Name: CLEDs Light Source Colour Measurement Spectrophotometer 350300200mm Size
Brand: CHN spec
Price: 1 USD

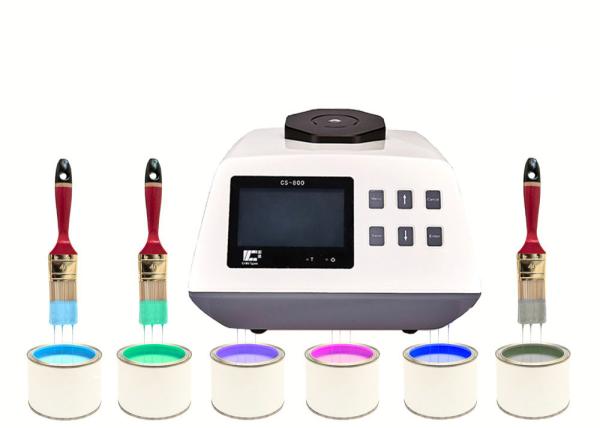

CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CS-800

Certification :

Price :

negotiable

Payment Terms :

T/T, Western Union, MoneyGram,Paypal

Supply Ability :

1000 per month

Delivery Time :

5-7 days

CLEDs Light Source Colour Measurement Spectrophotometer 350*300*200mm Size

High Quality Top-port Caliber Color Measurement Spectrophotometer Price

Introduction:

CS-800 is a highly performance spectrophotometer with test caliber upward. The instrument adopts the geometric conditions of D/8 lighting and observation of CIE recommendations, integration of the full band LED composite light source, double beam optical system, ETC every-time calibration technology, spectral reflectance standard deviation within 0.08, maximum of colorimetric values ΔE*ab is 0.03, to provide all the necessary color formula. It could be widely used for coating, printing, textile, meet plastic, food, medicine, automobile field to meet customers’ measurement requirement.

Specifications:

Type	CS-800
Illumination	d/8(Diffused lighting, 8 degrees observe angle)(conform to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphere	Φ40mm,Alvan diffused reflection surface coating
Wavelength range	400-700nm
Wavelength interval	10nm
Half spectral width	5nm
Observation angle	2°/10°
Measurement light source	A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Data being displayed	SPD distribution/data, sample's color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area,history data color simulation, manual input standard sample, generate measurement report
Measurement time	About 1 second
Measurement time interval	0.5 second
Measuring caliber	Φ11mm
Color space	CIE-Lab,LCh,Luv,XYZ,Yxy,reflectivity,Hunterlab,Munsell MI,CMYK
Color space
Color difference formulas	ΔEab,ΔECH,ΔEuv,ΔEcmc(2:1),ΔEcmc(1:1),ΔE94,ΔE*00,ΔEab(Hunter),555,color classification
Color difference formulas
Other colorimetric indices	WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby),YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Tint(ASTM E313,CIE,Ganz),metamerism index Milm, adhesive/changing color fastness, ISO luminance,8 gloss, A density, T density,E density, M density
Other colorimetric indices
Repeatability	light splitting reflectivity: standard deviation within 0.08%
Repeatability	color values:ΔE*ab<=0.015(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),Maximum: 0.03
Battery capacity	rechargeable, 20000 continuous tests, 7.4V/6000mAh
Data storage	40000 test results
Light source longevity	5 years, 1.5 million tests
Inter-instrument agreement	ΔE*ab within 0.2 (BCRA color charts II, average of the 12 charts)
Work temperature range	0~45℃, relative humidity 80% or below(at 35°C), no condensation

Competitive Advantage:

1). Solid samples (steel, cloth) can be placed directly on the measurement port, particles (tablets, master batch), powder (pigment, coffee), paste objects (tomato sauce) can be placed in a petri dish, and then placed in the measurement port.
color spectrophotometer portable

2. D8 Structure
Our device adopts internationally agreed observe condition D/8 (Diffused lighting, 8 degrees observe angle) and SCI(specular reflection included)/SCE(specular reflection excluded).

3. Can Measure SCI and SCE at the same time

4. ETC Technology (Every Test Calibration)

5. Color Analysis Software
Our spectrophotometer comes with the color management software, which is applicable in various industries’ quality control and management of color data. It turns color into numerical data, compares color differences, generates measurement reports. provides measurement data under different color spaces and customizes color management for each customer.
colorimeter spectrophotometer
