Name: Portable LED Light Source Color Testing Equipment Digital Color Meter with 40mm Integrating Sphere
Brand: CHN spec
Price: 1 USD

Portable LED Light Source Color Testing Equipment , Digital Color Meter with 40mm Integrating Sphere

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CS-280

Certification :

Price :

negotiable

Payment Terms :

T/T, Western Union, MoneyGram,Paypal

Supply Ability :

1000 per month

Delivery Time :

5-7 days

Portable LED Light Source Color Testing Equipment , Digital Color Meter with 40mm Integrating Sphere

LED Light Source Color Testing Equipment , Digital Color Meter with 40mm Integrating Sphere

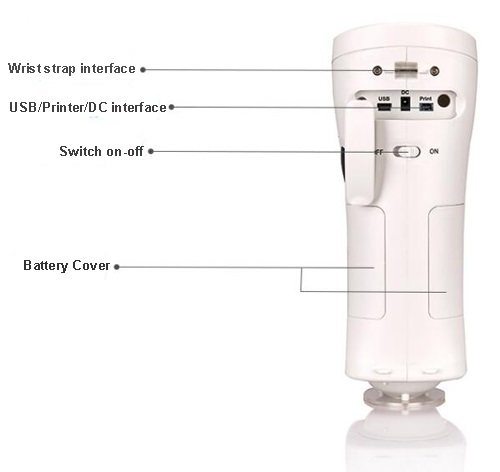

Color Meter Portable Introduction

Color meter can be widely used in different industries to measure sample color value L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.It can also be widely used for industries such as plastic, paint, fruit, textile,printing, automobile accessories, etc.

Color Meter Portable Technical Data

Type	CS-280
Illumination	di/8(Diffused Illumination, 8 degree viewing)
Size of integrating sphere	Φ40mm
Illumination Light source	CLED
Sensor	array sensor
Wavelength	400-700nm
Spectrum Resolution	10nm
Measurement Time	2s
Measurement Aperture	11mm,optional 4mm,6mm,15mm
Repeatability	Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles	2° and 10°
Light Source	A,C,D50,D65
Display	Chromaticity value(Lab,LCh),delta E value,pass/fail,color tendency, average, generate test report,spectrum reflectance figure /data
Color Difference Formula	ΔEab,ΔECH
Color Space	CIE-Lab,LCh
Light Source Lifetime	5 years, 1.5 million times
Interface	USB2.0
Operating Temperature	5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Power	Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V

Color Meter Portable Software

Color meter is with color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report. It will help the chemist finish the job much easier.

Color Meter Portable Advantage

1). High precise colorimeter;

2). Instrument comes with free Color PC software;

3). High measurement stability;

4). With verification certification from 3rd party;

5). Large storage memory:100 pcs targets and 200 pcs samples;

6). 400 - 700nm reflectance value.

Color Meter Portable Packing List

Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received

Qty.	Name	Qty.	Name
1	Main Instrument	1	Power Line
1	Operating Manual	1	USB Cable
1	Driving Software	1	Black/White Calibration Tiles
1	Color QC Software	1	Packing List

Color Meter Portable Warranty Time

a. One Year Guarantee Time.

b. If testing data is not correct, we can do refund.

c. We will provide testing report for every device to assure the authority of the data and it will save the calibration cost for 1 year.
