Name: 0 45 Working Temp Portable Color Spectrophotometer Effective For Paper Measurement
Brand: CHN spec
Price: 1 USD

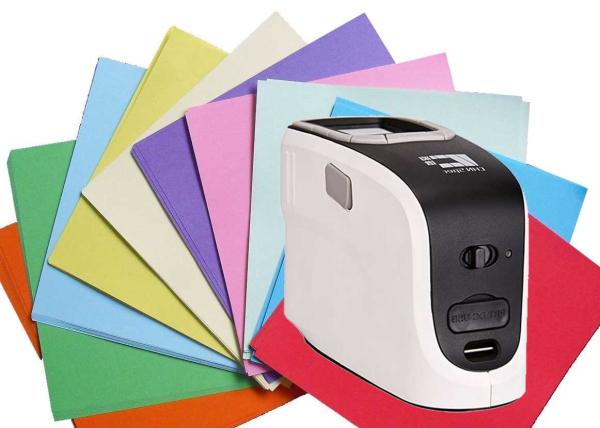

0 - 45℃ Working Temp Portable Color Spectrophotometer Effective For Paper Measurement

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CS-600

Certification :

Price :

negotiable

Payment Terms :

L/C, T/T, Western Union, MoneyGram

Supply Ability :

1000 per month

Delivery Time :

5-7 days

0 - 45℃ Working Temp Portable Color Spectrophotometer Effective For Paper Measurement

Hot Sale Color Testing Instrument Spectrophotometer For Paper Measurement

Introduction:

Our pantone spectrophotometer is designed for color measurmeent.It adopts high technology from overseas. It tests based on the condition of D/8 that is internationally used. Our device is widely used for color measurement for any industry especially for plastic,rubber,painting,textile,food,building material and other products’ color quality control.It could connect with color matching software to get recipes/formula.

Specifications:

Type	CS-600A/B (A and B are for different testing diameters.)
Illumination	d/8(Diffused lighting, 8 degrees observe angle),SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement.
Size of integrating sphere	Φ40mm,Alvan diffused reflection surface coating
Wavelength Range	400-700nm
Observation angle	2°/10°
Measurement light source	A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Data being displayed	SPD distribution/data,sample's color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report
Measurement time	1 second
Color space	CIE-Lab, LCh, Luv, XYZ, Yxy, Reflectance, Hunterlab,Munsell MI,CMYK
Color difference formulas	ΔEab, ΔECH, ΔEuv, ΔEcmc(2:1), ΔEcmc(1:1),ΔE94,ΔE*00, ΔEab(Hunter),555,color classification
Other colorimetric indices	WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness, ISO luminance, 8 gloss, A density, T density
Repeatability	light splitting reflectivity:standard deviation within 0.08%
Repeatability	color values:ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals), Maximum:0.05
Battery capacity	rechargeable, 10000 continuous tests, 7.4V/6000mAh
Light source longevity	5 years, 1.5 million tests
Inter-instrument agreement	ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Size	18173112mm(LWH)
Weight	about 550g(does not include battery's weight)
Display	True color screen that includes all colors
Work temperature range	0~45℃, relative humidity 80% or below( at 35°C ),no condensation
Standard accessories	DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts

Competitive Advantage:

1). Large data storage space

2). Large TFT display screen

3). Modern and fashionable design based on human engineering

4). Easy to operate and compact operation interface

5). Pre-locating panel design for easy instrument calibration

6). Uses LED light source; high capacity rechargeable lithium-ion battery

7). Can measure both SCI(specular included)and SCE(specular excluded) at the same time

Free Color QC Software:

Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.

Packing List:

Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received.

Qty.	Name	Qty.	Name
1	Main Instrument	1	Power Line
1	Operating Manual	1	USB Cable
1	Driving Software	1	Black/White Calibration Tile
1	Color QC Software	1	Verification Certification
1	Packing List	1	Warranty Card
