Name: Portable Dying Colour Measurement Spectrophotometer with 008 Repeatability
Brand: CHN spec
Price: 1 USD

Portable Dying Colour Measurement Spectrophotometer with 0.08 Repeatability

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CS-288

Certification :

Price :

negotiable

Payment Terms :

T/T, Western Union, MoneyGram,Paypal

Supply Ability :

1000 per month

Delivery Time :

5-7 days

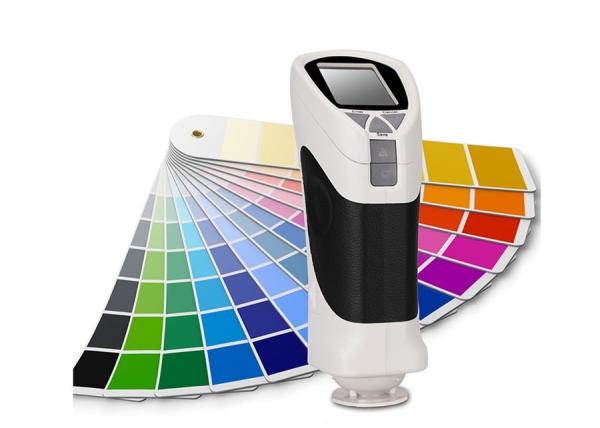

Portable Dying Colour Measurement Spectrophotometer with 0.08 Repeatability

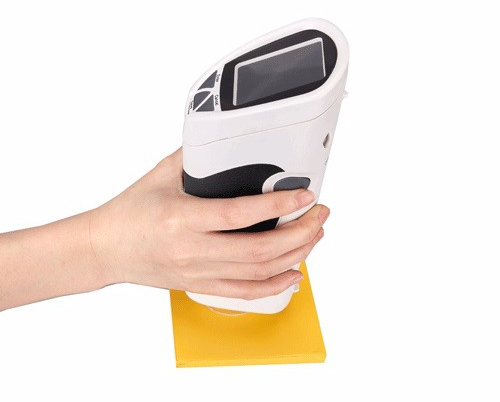

Portable Dying Colour Measurement Spectrophotometer with 0.08 Repeatability

Colour Measurement Spectrophotometer Introduction

Colour measurement spectrophotometer is also called spectro meter or color meter. It is widely used in different industries such as plastic, cement, printing, paint, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.It is also suitable for Ganz whiteness, CIE/ISO whiteness,ASTM whiteness,Hunter whiteness and other whiteness measurement.

Colour Measurement Spectrophotometer Specifications

Type	CS-288
Illumination	di/8(Diffused Illumination, 8 degree viewing) (conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard)
Size of integrating sphere	Φ40mm, Avian diffused reflection surface coating
Light source	CLED
Wavelength	400-700nm
Spectrum Resolution	10nm
Measurement Time	2s
Repeatability	Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles	2° and 10°
Light Source	A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84, NBF,U30,CWF,U35
Display	Chromaticity value(Lab,LCh), delta E value, pass/fail, color tendency, average, generate test report, spectrum reflectance figure /data
Display	With camera to see the measurement area, spectrum reflectance figure /data, manual input target data
Color Difference Formula	ΔEab,ΔECH,ΔEuv,ΔEcmc(2:1),ΔEcmc(1:1),ΔE94,ΔE*00
Color Space	CIE-Lab,LCh,Luv,XYZ,Yxy,Reflectance
Other	WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73)
Other	metameric index ,staining fastness , Color fastness
Light Source Lifetime	5 years, 1.5 million times
Language	Chinese and English
Operating Temperature	5~45℃, relative humidity 80% or below( at 35°C ),no condensation
Power	Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V

Colour Measurement Spectrophotometer Advantage

1). Automatic gloss compensation technology
2). Every test calibration technology
3). Patented Technology for stability
4). For YI, WI and Tint measurement
5). Obtain National Metrology Certification
6). SCS optional engine
7). Highest precision colorimeter
8). Adopt spectral measurement theory for high accuracy
9). Adopt CLEDs light source---spectrally balanced LED light source
10). Optional accessories for different functions

Colour Measurement Spectrophotometer Free Color QC Software

Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.It will help the color analysis worker finish the job much easier.

Colour Measurement Spectrophotometer Packing List

Qty.	Name	Qty.	Name
1	Main Instrument	1	Power Line
1	Operating Manual	1	USB Cable
1	Driving Software	1	Black/White Calibration Tiles
1	Color QC Software	1	Packing List

FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory located in Hangzhou city. Welcome to come to visit and purchase from us.

Q: How long is your delivery time?

A: Generally it is 1-3 working days if the goods are in stock.If not, we need 3-15 working days to prepare the products.

Q: Do you provide samples ? is it free?

A: Yes, customer need to pay for the freight.

Q: What is your terms of payment ?

A: Payment is 100% T/T in advance.

Q: What's your MOQ?

A: Our MOQ is 1 set. If you order more than 5 sets, we will give quantity discount.
