Name: ASTM ISO Standard Haze Measurement Instrument White Color High Efficiency
Brand: CHN spec
Price: 1 USD

ASTM / ISO Standard Haze Measurement Instrument White Color High Efficiency

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CS-720

Certification :

Price :

negotiable

Payment Terms :

L/C, T/T, Western Union, MoneyGram

Supply Ability :

1000 per month

Delivery Time :

5-7 days

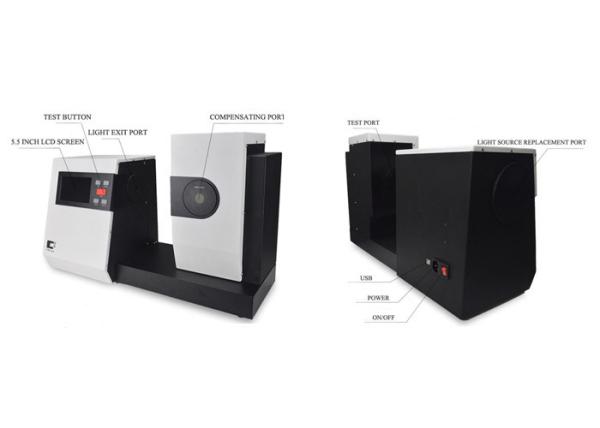

ASTM / ISO Standard Haze Measurement Instrument White Color High Efficiency

ASTM and ISO Standard Transparent Automobile Glass Haze Meter

Glass Haze Meter Introduction

Haze meter made by CHNSpec is designed for glass, plastic, films, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.

Measuring Haze is an important tool in helping manufacturers to produce a more consistent and uniform quality for transparent products.CS-720 haze meter will be your best choice for color and haze measurement, It is a revolutionary way to quantify Haze for more reliable color and haze measurements.

Glass Haze Meter Advantage

1. Conform to ASTM and ISO standard.

2. It can realize transmittance compensation measurement which can provide higher accuracy test result.

3. Open measurement area, no limit on sample size. Vertical measurement is also available.

4. Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.

5. Instrument is with haze and transmittance measurement software.

6. Three kinds of light sources A,C and D65 for haze measurement.

7. It can measure both haze and transmittance in one instrument with high efficiency.

Glass Haze Meter Technical Data

Type	Color and Transmittance Haze Meter CS-720
Light Source	CIE-A,CIE-C,CIE-D65 Chromaticity Value: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF, U30,DLF,NBF,TL83,TL84
Standards	ASTM D1003/D1044,ISO13468/ISO14782 CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard
Parameters	HAZE,Transmittance(T) CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard Whiteness Index (ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby) Yellowness Index (ASTM D1925,ASTM E313-00,ASTM E313-73) Tint(ASTM E313-00), Metamerism Index, Milm APHA,Pt-Co,Gardner,Color Difference (ΔEab,ΔECH,ΔEuv,ΔEcmc(2:1),ΔEcmc(1:1),ΔE94,ΔE*00)
Spectral Response	CIE Luminosity function y
Wavelength	400-700nm
Wavelength Interval	10nm
Geometry	0/d
Measurement Area/Sample Port	16.5mm/21mm
Measurement Range	0-100%
Haze Resolution	0.01
Haze Repeatability	≤0.1
Sample Size	Thickness ≤150mm
Display	5 inch TFT LCD screen
Memory	20000 value
Interface	USB
Power	220V
Working Temperature	10-40 ℃
Storage Temperature	0-50 ℃
Size (LxWxH)	598mm X 247mm X 366mm
Standard Accessory	PC software (Color QC)
Optional	Measurement Fixture, Haze standard film

Glass Haze Meter Packing List

Packing Material: Foam and Carton Box

Packing Size:70x34x56cm

Gross Weight:16kgs

Qty.	Name	Qty.	Name
1	Main Instrument	1	Power Line
1	Operating Manual	1	USB Cable
1	Driving Software	1	0% Calibration Tile
1	Haze PC Software	1	Packing List
1	Cap for Compensate Port (For ASTM)	1	Warranty Card
