    Portable Laboratory Pantone Colorimeter Device Testing Aperture Diameter 8mm

    Ask Lasest Price
    Brand Name : CHN spec
    Model Number : CS-260
    Certification : CE
    Price : negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 1000 per month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    Portable Laboratory Pantone Colorimeter Device Testing Aperture Diameter 8mm

    Portable Laboratory Pantone Colorimeter Device Testing Aperture Diameter 8m


    Pantone Colorimeter Introduction


    Pantone colorimeter is widely used in different industries for color difference test such as paper, electroplating oxide, paint, plastic cement, printing, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.Our colorimter could work with micro printer to print the testing result anywhere and anytime.

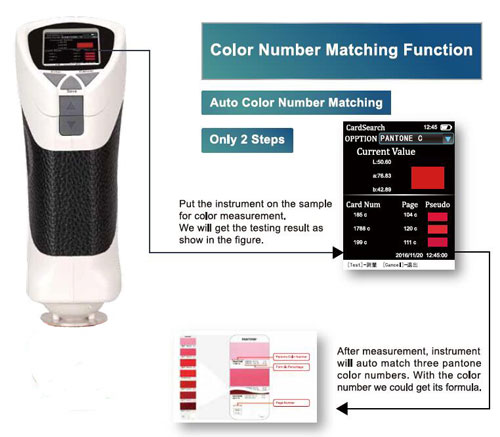

    CS-260 colorimeter is with a special function. After measure the sample, it could tell the most similar 3 pantone color numbers whose color value is close to the sample.



    Pantone Colorimeter Specification


    TypeCS-260
    Color SwatchesPantone
    Illumination system8/d(8°/diffused illumination)
    SCI
    Testing Port DiameterAbout 8mm
    Measuring conditionsCIE 10° standard observer; CIE D65 light source
    Measuring rangeL*:1-100
    RepeatabilityStandard deviation within delta E*ab*, below 0.08(testing condition: measure the white calibration board 80 times for average)
    Storage100 sets of standard samples; up to 100 under each standard sample
    Measuring timeAbout 0.5 seconds
    Measuring light sourceLED
    languagesChinese, English
    PowerFour AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter
    portUSB2.0 printer
    weight550g
    Size77×86×210mm

    Pantone Competitive Advantage


    1). Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability.

    2). Multiple color space display color values : L*a*b,L*c*h,Yxy.

    3). The device could store 100 standard sample groups and every sample group could store 100 sample data.

    4). Ergonomic Design

    5). Free Color Management Software

    6). Establish the Prototype Data L*a*b* by manually

    7). Test different points on sample and get the average value. It is widely used for color control whose color is not uniform.


    Free Colorimeter QC Software

    Our device is with mature PC management software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.



    Pantone Colorimeter Packing List


    Packing Material:Canvas bag with carton box

    Packing Size:230x230x240mm

    Packing Weight:2.4kgs

    Delivery time:3-20 days after payment received.


    Qty.NameQty.Name
    1Main Instrument1Power Line
    1Operating Manual1USB Cable
    1Driving Software1Black/White Calibration Tiles
    1Color QC Software1Packing List


    Company Information


    Our CHNSpec Technology., Ltd are specialized on manufacturing spectrophotometers, colorimeters and gloss meters. Our products have gotten more than 26 patents including 1 American Invention Patent, 8 Utility Model Patents, 4 Appearance Patents and 3 Software Copyrights till now. I believe our quality products will be your better choice.You are warmly welcome to visit and purchase from us.
