Scientific Instruments Laboratory Colorimeter Device For Measuring Color

Measurement for Color , Scientific Instruments Lab Colorimeter for Measuring Color

Introduction:

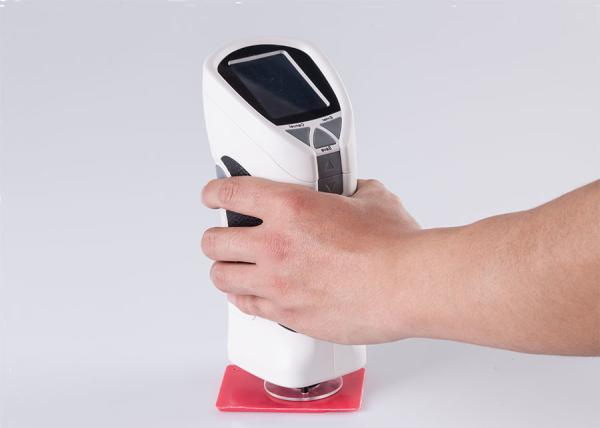

CS-200 colorimeter is specially designed for color measurement of opaque materials. It could test the color difference for meat,coffee, tomato sauce, colorant,pigment and other materials. It measures the sample color space L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.

Competitive Advantage

1). Free Color Management Software

2). Ergonomic Design

3). Can Test Degree of Whiteness and Yellow Degree

4). Multiple color space display color values : L*a*b,L*c*h,Yxy

5). Device sensor exports Japan and information processing chip is from USA, which guarantee the optical signal transfer accuracy and electrical signal stability

6). Establish the Prototype Data L*a*b* by manually

7). The device could store 100 standard sample groups and every sample group could store 100 sample data.

Specifications

Type	CS-200
Illumination system	8/d(8°/diffused illumination)
Illumination system	SCI
Testing Aperture Diameter	8mm (option 4mm)
Measuring conditions	CIE 10° standard observer; CIE D65 light source
Display	Chromaticity Value:Lab,Lch,ΔEab,relative RGB value YI (yellowness index) and WI (whiteness index)
Measuring range	L*:1-100
Repeatability	Standard deviation within delta Eab,below 0.08(testing condition: measure the white calibration board for average)
Storage	100 sets of target; 100 pcs samples under each target
Measuring time	About 0.5 seconds
Measuring light source	LED
languages	Chinese, English
Power	Four AA1.5V Alkaline battery or nickel-metal hydride batterys; Exclusive DC5V adapter
port	USB2.0 printer
weight	550g
Size	77×86×210mm

Free Colorimeter QC Software

Our colorimeter comes with mature PC software. It could connect the colorimeter with the PC. With the software, we could save and manage the color data, derive the data, generate testing report, test report printing. It will help the color analysis worker finish the job much easier.

Packing List

Packing Material:Canvas bag with carton box

Packing Size:230x230x240mm

Packing Weight:2.4kgs

Delivery time:3-20 days after payment received

Qty.	Name	Qty.	Name
1	Main Instrument	1	Power Line
1	Operating Manual	1	USB Cable
1	Driving Software	1	Black/White Calibration Tiles
1	Color QC Software	1	Packing List
