Name: High Accuracy Xenon Lamp Textile Spectrophotometer 360740nm Wavelength
Brand: CHN spec
Price: 1 USD

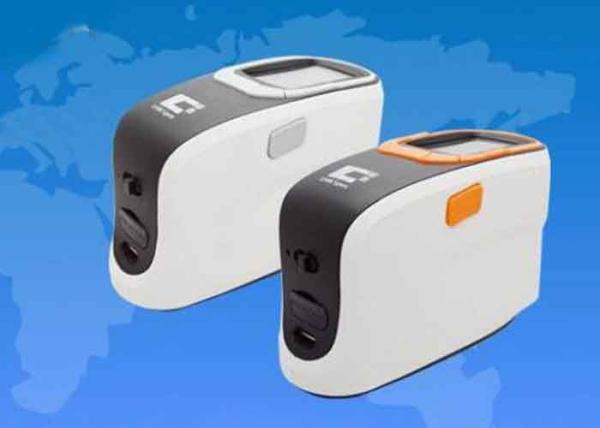

High Accuracy Xenon Lamp Textile Spectrophotometer 360-740nm Wavelength

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CS-650

Certification :

Price :

negotiable

Payment Terms :

L/C, T/T, Western Union, MoneyGram

Supply Ability :

1000 per month

Delivery Time :

5-7 days

High Accuracy Xenon Lamp Textile Spectrophotometer 360-740nm Wavelength

High Accuracy Xenon Lamp 360-740nm Wavelength Handheld Textile Color Tester

Textile Color Tester Introduction

Textile color tester is widely used for color testing of textile, fabrac, yarn. Beside color measurement for these materials, it can also be used to measure painting, plastic, food, building material and other products’ color for quality control.Our color tester adopts high technology from overseas. It tests based on the geometry of D/8 that is internationally used. CS-650 color tester is with UV light source, so it is suitable for measurement the color of fluorescent products.

Textile Color Tester Specifications

Type	CS-650
Illumination	d/8(Diffused lighting, 8 degrees observe angle)(conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standards)
Size of integrating sphere	Φ40mm,Alvan diffused reflection surface coating
Wavelength range	360-740nm
Reflectivity range	0-200%
Reflectivity resolution	0.01%
Observation angle	2°/10°
Measurement light source	A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84, NBF,U30,CWF
Data being displayed	SPD distribution/data,sample's color values,color difference values/graph,pass/fail results,color error tendency,color simulation,display measurement area,history data color simulation,manual input standard sample,generate measurement report
Measurement time interval	1 seconds
Measurement time	1 second
Color space	CIE-Lab, LCh, Luv, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB
Color difference formulas	ΔEab, ΔECH, ΔEuv, ΔEcmc(2:1), ΔEcmc(1:1),ΔE94,ΔE*00 ΔEab(Hunter),555,color classification
Other colorimetric indices	WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby); YI(ASTM D1925,ASTM E313-00,ASTM E313-73);Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density
Repeatability	light splitting reflectivity:standard deviation within 0.08%
Repeatability	color values:ΔE*ab<=0.02, Maximum:0.04
Battery capacity	rechargeable, 10000 continuous tests, 7.4V/6000mAh
Light source longevity	5 years, 1.5 million tests
Inter-instrument agreement	ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Work temperature range	0~45℃, relative humidity 80% or below( at 35°C ),no condensation

Textile Color Tester Competitive Advantage

1). Obtained Metrology Accreditation Certificate in China
2). Large TFT display screen
3). Modern and fashionable design based on human engineering
4). Uses LED light source; high capacity rechargeable lithium-ion battery
5). Can measure both SCI(specular included)and SCE(specular excluded) at the same time
6). Professional horizontal design and it does not have any moving parts, which avoids the shaking of the instrument during measurement process. This makes the measurement more accurate
7). PC software for easy measurement data management
8). Large data storage space: can store up to 100 sets of standard samples, with up to 200 measurement records for each standard sample

Textile Color Tester Free Color QC Software
Device is with mature color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report.

Textile Color Tester Packing List
Packing Material:Canvas bag with carton box
Packing Size:290x250x230mm
Packing Weight:1.98kgs
Delivery time:3-20 days after payment received.

Qty.	Name	Qty.	Name
1	Main Instrument	1	Power Line
1	Operating Manual	1	USB Cable
1	Driving Software	1	Black/White Calibration Tile
1	Color QC Software	1	Verification Certification
1	Packing List	1	Warranty Card
