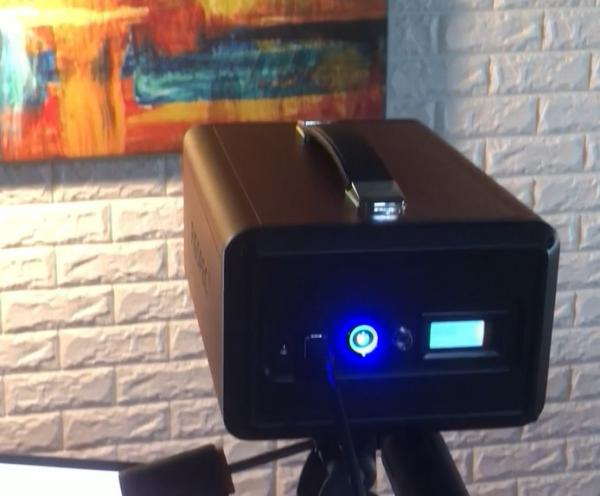

Name: 25um Slit Width Hyperspectral Imaging Camera With CMOS Detector FS20
Brand: CHNSpec
Price: 1 USD

25um Slit Width Hyperspectral Imaging Camera With CMOS Detector FS-20

Ask Lasest Price

Brand Name :

CHNSpec

Model Number :

FS-20

Certification :

Price :

negotiable

Payment Terms :

T/T

Delivery Time :

5-7days

Supply Ability :

1000 per month

25um Slit Width Hyperspectral Imaging Camera With CMOS Detector FS-20

25um Slit width Hyperspectral Imaging Camera With CMOS Detector FS-20

FIGSPEC FS2X Series

Imaging Hyperspectral Cameras

FigSpec® series of imaging hyperspectral cameras adopt transmission grating splitter module with high diffraction efficiency and high sensitivity surface array camera, combined with built-in scanning imaging and auxiliary camera technology, which solves the difficult problems of tradi tional hyperspectral cameras, such as external push scan imaging mechanism and complex focus. It can be directly integrated with standard C interface imaging lens or microscope to achieve rapid spectral image acquisition.

Visible spectrum/NIR:

· Spectral range: 400-1000nm, wavelength resolution better than 2.5nm, up to 1200 spec

tral channels.

· Image resolution up to 1920*1920

SW-NIR:

· Spectral range: 900-1700nm, wavelength resolution better than 8nm, up to 254 spectral

channels

· Image resolution up to 320*320

Application fields

Spectral analysis, material sorting, fruit and vegetable analysis, agricultural remote sensing, industrial detection,

UAV-borne hyperspectral imaging analysis, portable hyperspectral imaging analysis.

Parameters

Model	FS-20	FS-22	FS-23	FS-25
Spectroscopic method	Grating	Grating	Grating	Grating
Image resolution	1920*1920	1920*1920	1920*1920	320*320
Dynamic range	12 bits	12 bits	12 bits	14 bits
Imaging speed	≤15 seconds	≤15 seconds	≤5 seconds	≤5 seconds
Spectal channels number	600	1200	1200	254
Spectral region	400-700nm	400-1000nm	400-1000nm	900-1700nm
Spectral resolution	2.5nm	2.5nm	2.5nm	8nm
Slit width	25um	25um	25um	25um
Transmission efficiency	60%	60%	60%	60%
Stray light level	0.5%	0.5%	0.5%	0.5%
Pixel size	5.86um*5.86um	5.86um*5.86um	5.86um*5.86um	30um*30um
Detector type	CMOS	CMOS	CMOS	InGaAs
Senscar imaging surface size	11.3*7.1mm	11.3*7.1mm	11.3*7.1mm	9.6mm x7.68mm
Standard lens focal length	25mm	25mm	25mm	25mm
Minimum working distance	100mm	100mm	100mm	100mm
Field angle	25°	25°	25°	17°
Mirimum exposure time	34us	34us	21us	1us
Maximum exposure time	10 seconds	10 seconds	10 seconds	1 seconds
SNR	600/1	600/1	600/1	600/1
Data interface	USB3.0	USB3.0	USB3.0	Gigabit network
Camera lens interface	C	C	C	C
Accessories	USB3.0 transmission line	USB3.0transmission line	USB3.0 transmission line	Gigabit network transmission line

CHNSpec Technology （Zhejiang）Co.,Ltd. was found in 2008, and we are specializes in the R&D, production and sales of colorimeters, spectrophotoemters, haze meters, gloss meters and spectral analysis instruments, and is a leading producer in the color measurement field in China.Oue products have been widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory..We are national high technology enterprise.Till September of 2018, Hangzhou CHNSpec Technology has received 11 invention patents ,3 software copyright patents and one American invention patent.In addition there are more than 10 invention patents in the announcement state. We have published more than 20 papers which more than 10 papers in SCI and EI and others are in the national first grade journal of science and research.

Our goal is to exceed the expectations of every client by offering outstanding customer service, increased flexibility, and greater value, thus optimizing system functionality and improving operation efficiency.We wish create value for customers and achieve win-win and common development and open a new era.

CHNSpec’s one-stop service gives you complete control over the sourcing, distribution, sales, delivery and after-sales services. In addition, our attention to detail and quality of work, paired with years of industry experience, make us your perfect partner to produce outstanding results. We also offer a significant security advantage to you as we are the only organization with trusted and experienced key staff involved in the product sales. It also means effective cost control and short lead times between sales and deliveries. We put customers upon everything else, and we are trying our best to satify your all needs.We sincerely support the best services for out customers

Our quality assurance program ensures that all products continuously conform to standards, from when it was sourced to when it is awaiting delivery at our warehouse. All of our products are being tested by QC and verified by 3rd party to ensure all the specifications are strictly met.

CHNSpec will always provide on time delivery. From order taking to deliveries, we ensure all products are sent out to esteemed customers on time. Before-sales and after-sales service is paramount to us, and constantly ingrained into our staff. All CHNSpec personnel are well-equipped with deep product knowledge and trained in the marketing and sales aspect of our products. Lastly, all product queries are important to us, no matter the size and scale of it.
