Name: CHNSpec Haze Measurement Instrument ASTM D1003 Portable
Brand: CHNSpec
Price: 1 USD

CHNSpec Haze Measurement Instrument ASTM D1003 Portable

Ask Lasest Price

Brand Name :

CHNSpec

Model Number :

DH-12

Certification :

Price :

negotiable

Payment Terms :

T/T

Supply Ability :

1000 per month

Delivery Time :

5-7days

CHNSpec Haze Measurement Instrument ASTM D1003 Portable

CHNSpec Haze Measurement Instrument Accessories ASTM D1003 Haze Meter

ASTM D1003 Film Haze And Portable Measure Instrument Plastic Glass Transparency Tester DH-12

Haze is measured with a wide angle scattering test in which light is diffused in all directions which results in a loss of contrast. That percentage of light that when passing through that deviates from the incident beam by greater than 2.5 degrees on average is defined as haze.

Digital haze meter also measures total transmittance. Total transmittance is the measure of the total incident light compared to the light that is actually transmitted (e.g. total transmittance). So the incident light may be 100%, but because of absorption and reflection the total transmittance may only be 94%

Part 1. Product Advantages

1).The portable haze meter has a small volume and is easy to carry, making it easy to detect haze and transmittance.

2). High Accuracy: Display resolution 0.01; Good repeatability ≤0.02

3). What have we done to guarantee the instrument repeatability?

a. Instrument will do self-check regularly when it is in standby mode.

b. Dual Optical Paths Design

4). DH-12 supports 2 kinds of test apertures 21mm, 15mm to measure the samples with different sizes.

5). The haze meter conforms to the standards of GB/T 2410, ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361 and JIS K 7136.

6). It adopts 2.8 inches touch screen

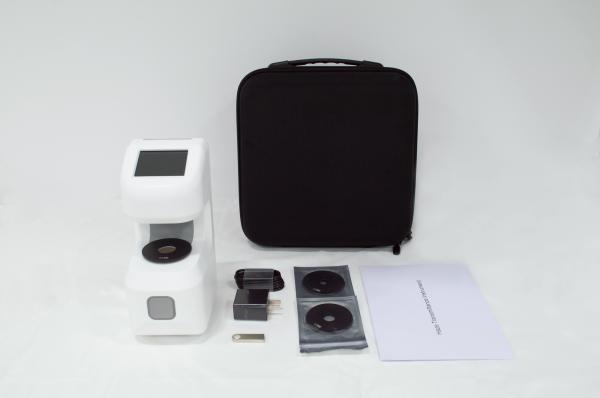

Part 2. Packing List

Model	DH-10	DH-12	DH-13
Packing List	Instrument	Instrument	Instrument
	-	Charging Head	Charging Head
	USB Cable / Recharging Cable	USB Cable / Recharging Cable	USB Cable / Recharging Cable
	U Disk ( QC software, manual)	U Disk ( QC software, manual)	U Disk ( QC software, manual)
	1 test aperture	2 test apertures	3 test apertures
	Qualified Certificate	Qualified Certificate	Qualified Certificate
	Warranty Card	Warranty Card	Warranty Card
	Packing List	Packing List	Packing List
	Calibration Certificate	Calibration Certificate	Calibration Certificate
	-	-	Black Carrying Case

Part 3. Main Parameter Comparison Sheet

Model	DH-10	DH-12★	DH-13
ASTM-haze/transmittance	✔	✔	✔
ISO- haze/transmittance	✘	✔	✔
Test Apertures	21mm	21mm, 15mm	21mm, 15mm, 12mm
Resolution	0.1%	0.01%	0.01%
Repeatability	0.1	0.05	0.02
Lithium Battery	✘	✔	✔
Weight	1.13kg	1.25kg	1.25kg

Part 4. Technical Data

Model	DH-10	DH-12	DH-13
Light Source	CIE-A,CIE-C,CIE-D65	CIE-A,CIE-C,CIE-D65	CIE-A,CIE-C,CIE-D65
Standards	ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08	ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08	ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08
Parameter	ASTM-haze/transmittance	ASTM & ISO -haze/transmittance	ASTM & ISO -haze/transmittance
Spectral Response	CIE The spectrum function Y/V(λ)	CIE The spectrum function Y/V(λ)	CIE The spectrum function Y/V(λ)
Geometry	0/d	0/d	0/d
Test Aperture	21mm	21mm, 15mm	21mm, 15mm, 12mm
Test Range	0-100%	0-100%	0-100%
Resolution	0.1%	0.01%	0.01%
Repeatability	0.1	0.05	0.02
Sample Size	Thickness ≤40mm	Thickness ≤40mm	Thickness ≤40mm
Display	2.8 inches touch screen	2.8 inches touch screen	2.8 inches touch screen
Data Storage	Mass Storage	Mass Storage	Mass Storage
Interface	USB	USB	USB
Power	DC 5V/2A	Rechargeable Lithium Battery	Rechargeable Lithium Battery
Working Temperature	5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation	5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation	5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation
Storage Temperature	-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation	-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation	-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation
Size	133mm x 99mm x 224mm (length X width X height)	133mm x 99mm x 224mm (length X width X height)	133mm x 99mm x 224mm (length X width X height)
Weight	1.13 kg	1.25 kg	1.25 kg
Optional	Test Aperture with custom made size	Test Aperture with custom made size	Test Aperture with custom made size

Part 5. Application

CHNSpec Technology （Zhejiang）Co.,Ltd. was found in 2008, and we are specializes in the R&D, production and sales of colorimeters, spectrophotoemters, haze meters, gloss meters and spectral analysis instruments, and is a leading producer in the color measurement field in China.Oue products have been widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory..We are national high technology enterprise.Till September of 2018, Hangzhou CHNSpec Technology has received 11 invention patents ,3 software copyright patents and one American invention patent.In addition there are more than 10 invention patents in the announcement state. We have published more than 20 papers which more than 10 papers in SCI and EI and others are in the national first grade journal of science and research.

Our goal is to exceed the expectations of every client by offering outstanding customer service, increased flexibility, and greater value, thus optimizing system functionality and improving operation efficiency.We wish create value for customers and achieve win-win and common development and open a new era.

CHNSpec’s one-stop service gives you complete control over the sourcing, distribution, sales, delivery and after-sales services. In addition, our attention to detail and quality of work, paired with years of industry experience, make us your perfect partner to produce outstanding results. We also offer a significant security advantage to you as we are the only organization with trusted and experienced key staff involved in the product sales. It also means effective cost control and short lead times between sales and deliveries. We put customers upon everything else, and we are trying our best to satify your all needs.We sincerely support the best services for out customers

Our quality assurance program ensures that all products continuously conform to standards, from when it was sourced to when it is awaiting delivery at our warehouse. All of our products are being tested by QC and verified by 3rd party to ensure all the specifications are strictly met.

CHNSpec will always provide on time delivery. From order taking to deliveries, we ensure all products are sent out to esteemed customers on time. Before-sales and after-sales service is paramount to us, and constantly ingrained into our staff. All CHNSpec personnel are well-equipped with deep product knowledge and trained in the marketing and sales aspect of our products. Lastly, all product queries are important to us, no matter the size and scale of it.
