Name: Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio
Brand: CHNSpec
Price: 1 USD

Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio

Ask Lasest Price

Brand Name :

CHNSpec

Model Number :

FS-63

Certification :

Price :

gotiable

Payment Terms :

T/T

Supply Ability :

1000 per month

Delivery Time :

5-7days

Ultra High Speed Spectral Scanning Imaging Device With High Signal To Noise Ratio

Ultra-High Speed Spectral Scanning Imaging Device With High Signal-To-Noise Ratio

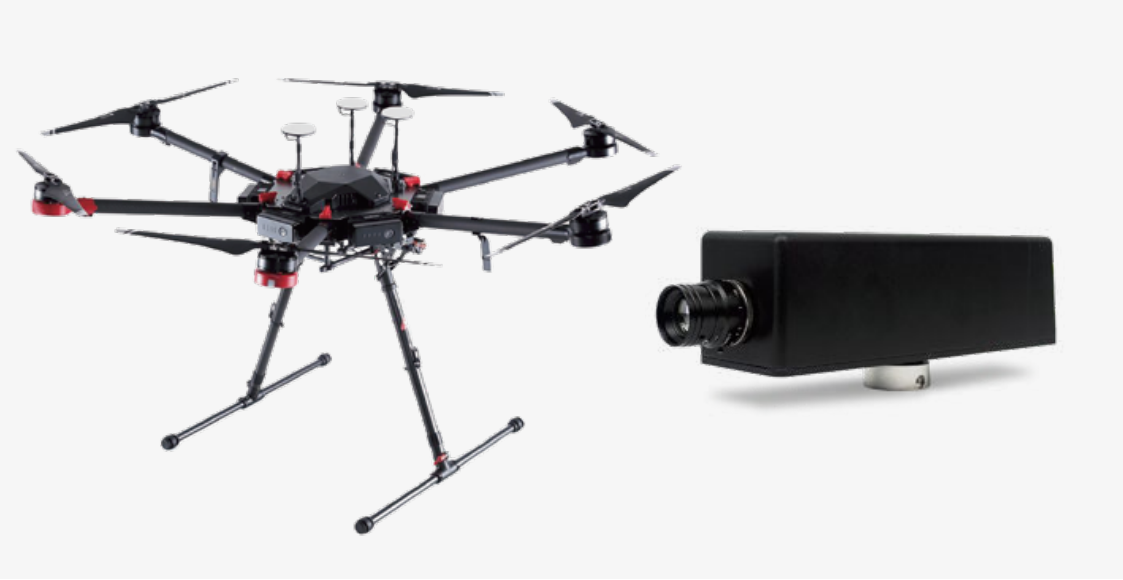

FS-63 UAV near-infrared

hyperspectral measurement system

♦Dji M300RTK (DJI M600Pro optional) is used as the flight bearing platform.

♦Ultra-high speed spectral scanning imaging device with high signal-to-noise ratio provides high stability of

spectral image acquisition.

♦A self-developed high efficiency and low power image processing algorithm is adopted to greatly prolong the

flight time of the whole machine and reduce the power consumption of the system.

♦Through real-time measurement of spectral image information of plants, water, soil and other ground objects, it

can be applied to precision agriculture, crop growth and yield assessment, forest disease and insect pest

monitoring and fire monitoring, coastline and marine environmental monitoring, lake and watershed environ

mental monitoring and other applications.

♦The system design is compact and the main spectral resolution of the imaging spectrometer is up to 2.5nm.

Components: high stability head, hyperspectral imager, embedded data acquisition and processing storage

unit, wireless image transmission system, GPS-RTK navigation system, ground receiving workstation, ground

control system, reflectance calibration board.

Applications

Technical parameters

Flight unit parameters(M600 Pro)

Symmetrical motor wheelbase	1133 mm
Weight(Including 6 TB47S batteries)	9.5 kg
Weight(Including 6 TB47S batteries)	10 kg
Recommended maximum takeoff weight	15.5 kg
Overall dimension	1668 mm × 1518 mm × 727 mm
	(Propeller, boom and GPS support are all deployed with landing gear)
	437 mm × 402 mm × 553 mm
	(The boom and GPS bracket are folded without landing gear)
Hover accuracy(P-GPS)	Vertical: ± 0.5 m, horizontal: ± 1.5 m
Maximum rotation angular speed	Pitch axis: 300 °/s, heading axis: 150 °/s
Maximum pitch angle	25°
Maximum rising speed	5 m/s
Maximum descent speed	3 m/s
Maximum allowable wind speed	8 m/s
Maximum horizontal flight speed	65 km/h(Windless environment)
Maximum takeoff altitude	2170 slurry:2500 m,2195 slurry:4000 m
Hover time (6 TB47S batteries)	No load:32 min,Load 6 kg:16 min
Hover time (6 TB48S batteries)	No load:38 min,Load 5.5 kg:18 min
Operating ambient temperature	-10 ~ 40℃

Hyperspectral camera parameters

Spectroscopic method	Transmission grating spectroscopy
Spectral range	900-1700nm
Number of spectral channels	254
Spectral resolution	8nm
Slit width	25um
Transmission efficiency	＞60%
Stray light	＜0.5%
Number of spatial pixels	320
Pixel size	30um
Imaging speed	200fps
Detector	InGaAs
SNR(Peak)	600/1
Output	Gigabit network interface
Interface	C-Mount
Parts	USB3.0 or Gigabit network
ROI	Single area
Software interface	The instrument can communicate with PLANTEYE ®, FIGSPEC ®, SCICHROMA ® One of the software carries out data communication and provides it in the annex of the response document. The authorization document of the brand owner and the trademark registration certificate of the brand owner. With ROI function, it can achieve ROI in multiple regions






Technical certification	※ Relevant technologies and products have won relevant awards and certificates of national instrument industry association ※ Relevant technologies and products have won relevant awards and certificates of national industry-university-research association ※ Relevant technologies and products have won the third prize (including) of the Provincial Science and Technology Progress Award ※ Relevant technologies have obtained domestic invention patents and American invention patents to ensure the international scope It has independent intellectual property rights.

CHNSpec Technology （Zhejiang）Co.,Ltd. was found in 2008, and we are specializes in the R&D, production and sales of colorimeters, spectrophotoemters, haze meters, gloss meters and spectral analysis instruments, and is a leading producer in the color measurement field in China.Oue products have been widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory..We are national high technology enterprise.Till September of 2018, Hangzhou CHNSpec Technology has received 11 invention patents ,3 software copyright patents and one American invention patent.In addition there are more than 10 invention patents in the announcement state. We have published more than 20 papers which more than 10 papers in SCI and EI and others are in the national first grade journal of science and research.

Our goal is to exceed the expectations of every client by offering outstanding customer service, increased flexibility, and greater value, thus optimizing system functionality and improving operation efficiency.We wish create value for customers and achieve win-win and common development and open a new era.

CHNSpec’s one-stop service gives you complete control over the sourcing, distribution, sales, delivery and after-sales services. In addition, our attention to detail and quality of work, paired with years of industry experience, make us your perfect partner to produce outstanding results. We also offer a significant security advantage to you as we are the only organization with trusted and experienced key staff involved in the product sales. It also means effective cost control and short lead times between sales and deliveries. We put customers upon everything else, and we are trying our best to satify your all needs.We sincerely support the best services for out customers

Our quality assurance program ensures that all products continuously conform to standards, from when it was sourced to when it is awaiting delivery at our warehouse. All of our products are being tested by QC and verified by 3rd party to ensure all the specifications are strictly met.

CHNSpec will always provide on time delivery. From order taking to deliveries, we ensure all products are sent out to esteemed customers on time. Before-sales and after-sales service is paramount to us, and constantly ingrained into our staff. All CHNSpec personnel are well-equipped with deep product knowledge and trained in the marketing and sales aspect of our products. Lastly, all product queries are important to us, no matter the size and scale of it.
