Cheap Color Meter Pro Pocket Colorimeter For Mobile Phone APP
Build-In RAL NCS Pantone Color Shade Painting Coating
ColorMeter Pro will take you into a new world of color management;
It can be widely used to measure color value, color difference
value and find similar color from color cards for printing
industry, paint industry, textile industry, etc.
Part 1. Instrument Function Introduction
1. Measure Color Value
Adopt international used D/8 (Diffused Illumination, 8 degree
viewing) geometry and SCI mode to make measurement more accurate.
Adopt spectral sensor to provide reflectance data which make its
performance much better than colorimeter.
To get correct L*a*b, L*Ch, RGB, Hex and other color value under
light source D65 or D50.
It can measure whiteness index, yellowness index, color strength,
color fastness, opacity and other 20 kinds of parameters with 26
kinds of illuminants.

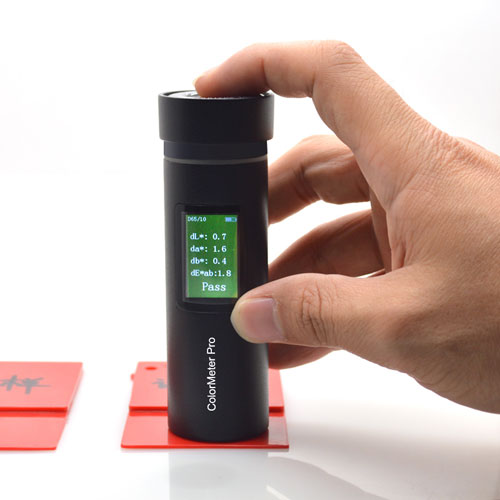

Operate on Instrument

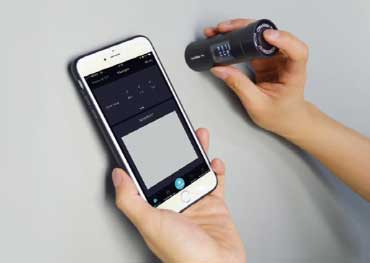

Operate on Mobile Phone APP
2. Measure Color Difference Value
“Pass” or “Fail” judgment can be seen from both instrument and
APP.
ΔE *ab, ΔE * CH and other color difference formulas, display
color difference value, color difference evaluation results.
Connect to App for color difference evaluation, color difference
tolerance and parameters can be set in APP.
3. Portable and Massive Color Card Database
Bluetooth to connect with mobile phone APP to create database to
upload the color shades from printing, paint, textile color cards.
No need to carry big and heavy color card, we can find color card
database from Colormeter Pro APP and find the closed/similar color
easier and faster.
4. Artificial Intelligence for Accurately Measure Color
AI-based color search engine for accurately measure color;
Color can be collected anywhere and anytime.
5. Innovation Design for Auto Black and White Calibration
Auto instrument black and white calibration for easier and
correct color test
APP will remind for calibration if instrument works for long time
From APP we can do manual calibration and set calibration
interval.
6. Single Instrument for Test and Save Test Value
1.14 inches IPS display screen to show color information.
Data can be saved on instrument and instrument data can be synced
into APP.
7. Cloud database, more convenient to view and upload
Official color card databases are available.
Personal users can update color information to cloud and share
between different instruments which make color management much
easier.
Enterprise users can create and manage their own color card
library and formula information in the cloud and share the
information to their customers and suppliers through the unique
invitation code.
8. Packing List
| Name | Qty. |
| Instrument | 1 |
| Type-C Cable | 1 |
| Operate Manual | 1 |
9. Technical Data
| Model | ColorMeter Pro |
Illumination and Viewing System | D/8, SCI (specular component included) |
| Color Spaces , Color Difference and Indices | Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB,
Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index
(ASTM E313-00,ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger
Stensby), YellownessIndex |
| (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM),
Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color
Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity,
Color Strength |
| Light Source | LED (Full Wavelength Balanced LED Light Source) |
| Measure Aperture | 8mm |
Wavelength Interval | 10nm |
Wavelength Range | 400-700nm |
| Repeatability | ΔE≤0.1 (when a white tile is measured 30 times at 5-second
intervals after calibration) |
Measurement Time | 1s |
| Interface | USB, Bluetooth |
| Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,
U35,DLF,NBF,TL83,TL84 |
| Observer | 2° and 10° |
| Display Screen | IPS Full Color Screen (screen resolution 135*240,1.14 inches) |
| Battery | 4.2V / 760mAh, Rechargeable, 10,000 continuous tests |
| Language | English and Chinese |
| Calibration | Auto |
| Software Support | Android, IOS, Windows |
| Weight | About 90g |
| Instrument Size | Diameter 31mm , Height 102mm |
