Ecomonic Benchtop spectrophotometer CS-820N for Plastic Color
Matching ,Textile color measurement , Painting and Coating Color
Management
Part 1. Benchtop Spectrophotometer Introduction
CS-820N is an smart, simple operate and high precise
spectrophotometer. It adopts 7 inches touch screen, full wavelength
range, Android operate system. Illumination : reflectance D/8° and
transmittance D/0°(UV included / UV excluded), high accuracy for
color measurement, large storage memory, PC software, because of
above advantages, it is used in laboratory for color analysis and
communication.
Part 2. Benchtop Spectrophotometer Parameter
| Illumination/ Viewing System | Reflection: d/8(Diffused illumination, 8 degree viewing) Simultaneous measurement of SCI/SCE (ISO7724/1, CIE No.15, ASTM
E1164,DIN5033 Teil7,JIS Z8722 Condition C standard) Transmittance d/0(Diffused illumination, 0 degree viewing ) |
| Sphere Diameter | 152mm |
| Wavelength | 360-780nm |
| Wavelength Pitch | 10nm |
Reflectance Range Resolution | 0-200% 0.01% |
| Light Source | Pulse Xenon Lamp |
| UV Measurement | Include UV, 400nm cut, 420nm cut, 460nm cut |
| Measurement Aperture | Reflectance: XLAV Φ25.4mm/Φ30mm,
LAVΦ15mm/18mm,MAVΦ8mm/Φ11mm,SAVΦ3mm/Φ6mm (Aperture size can be
custom made) Auto aperture size recognition Transmittance:Φ17mm/Φ25mm |
| Repeatability | XLAV Spectrum Reflectance/Transmittance: standard deviation within
0.1% XLAV Chromaticity value: Standard deviation within ΔE*ab 0.015 *
When a white calibration plate is measured 30 x at 5-second
intervals after white calibration |
| Inter-Instrument Agreement | XLAV ΔE*ab 0.015 (BCRA Series II, Average measurement of 12 tiles,
at 23℃) |
| Illuminants | A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 CWF,U30,DLF,NBF,TL83,TL84 |
| Display | Reflectance and Transmittance graph/value, color value, color
difference values,pass/fail, color simulation, color assessment,
haze, liquid chromaticity values, color tendency |
| Viewing Angles | 2° and 10° |
| Color Spaces | L*a*b, L*C*h, Hunter Lab, Yxy, XYZ |
| Other Indices | WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger,
Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73),Tint(ASTM
E313-00,CIE,Ganz),Metamerism index milm, stain fastness, color
fastness, ISO brightness, R457, A density, T density, E density, M
Density, APHA/Pt-Co/Hazen, Gardner, Saybolt, ASTM color, Haze,
Total Transmittance, Opacity, Color Strength |
| Color Difference | ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔE*ab(hunter),555 shade
sort |
| Language | Chinese and English |
| Storage Memory | 8GB |
| Screen Size | 7 Inches Touch Screen |
| Operate Temperature | 5-40℃(40-104F), relative humidity 80% (at 35℃) no condensation |
| Weight | 10.8kgs |
Part 3. Benchtop Spectrophotometer Advantages
1). Adopts reflectance D/8° and transmittance D/0° geometry to
measure both opaque and transparent materials.
2). Dual Optical Paths Spectrum Analysis Technology
This technology can simultaneous access to both measurement and
instrument internal environmental reference data to ensure
instrument accuracy and long-term stability.
3). Compatible with SCI/SCE measurement, Support SCI+SCE
Measurement
Instrument adopts D/8 geometry which is highly recommends by CIE
(International Commission on Illumination) to meet color
measurement of different industries. It supports both SCI (specula
component included) and SCE (specular component excluded) mode for
better detect of color change. Fast SCI+SCE measurement, test time
only need less than 4s.
4). Rotatable Touch Screen with Android Operate System
Screen position and direction can be adjusted according to the
instrument test methods.
5). Open Transmittance Measurement Area, no limit on sample size
6). Different Kinds of Accessories for simple measurement
It contains 15 kinds of standard and 12 kinds of optional
accessories to measure different kinds of materials
7). Accessory Drawer to Protect and Store Accessories
8). Switchable Reflectance Apertures (30mm,18mm,11mm and 6mm)
9). Four Kinds of UV Test Modes for Fluorescence Material
Measurement
Part 4. Bench-top Spectrophotometer Structure

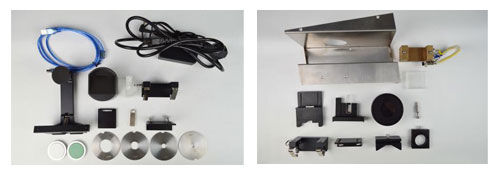

Part 5. Benchtop Spectrophotometer Packing List

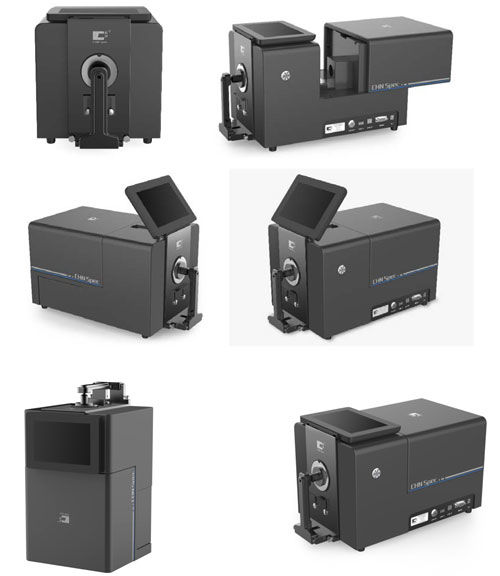

Part 6. More Pictures of Benchtop Spectrophotometer
