Name: Touch Screen Plastic Glass Transparency Meter for Clarity Haze and Transmission Test CS720
Brand: CHN spec
Price: 1 USD

Touch Screen Plastic Glass Transparency Meter for Clarity Haze and Transmission Test CS-720

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CS-720

Certification :

Price :

negotiable

Payment Terms :

L/C, T/T, Western Union, MoneyGram

Supply Ability :

1000 per month

Delivery Time :

5-7 days

Touch Screen Plastic Glass Transparency Meter for Clarity Haze and Transmission Test CS-720

CS-720 Digital Window Tint Meter Measure the Transmittance or Haze and Turbidity or Clarity of plastics

It is designed for for clarity, color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen,etc.

Touch Screen Plastic Glass Transparency Meter for Clarity Haze and Transmission Test CS-720

1. Different measurement parameters and professional clarity measurement function

The clarity and haze meter CS-720 can not only measure haze,
transmittance, and transmission color, but also provides
professional clarity measurement function, suitable for
applications in high-definition films, display glass and other
fields.

Touch Screen Plastic Glass Transparency Meter for Clarity Haze and Transmission Test CS-720

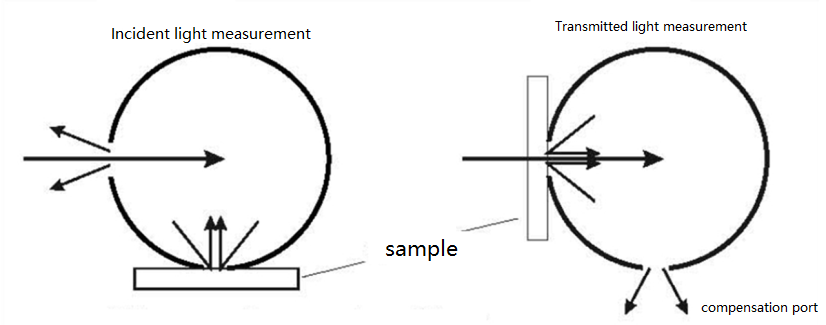

5.Compensation Measurement to Make Test Result More Accurate
It can realize the compensation measurement of transmittance and
provide more accurate transmittance test results.
6. Haze QC software as Standard Accessory
Provide powerful haze, color, and transmittance measurement and
analysis software, which can operate on a computer to generate and
print test reports.

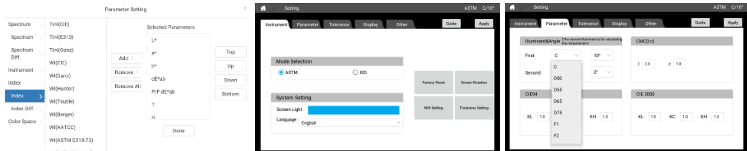

7.Seven-inch Android Touch Screen for Better Testing Experience
Android operate system and touch screen for more convenient
operation and better user experience.
Haze Measurement Instrument Specifications
TypeColor and Haze Meter CS-720
Light SourceCIE-A,CIE-C,CIE-D65
Chromaticity Value:
A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,
U30,DLF,NBF,TL83,TL84
StandardsASTM D1003/D1044,ISO13468/ISO14782
CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,
JIS Z8722 Condition c standard
ParametersHAZE,Transmittance(T)
CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,
JIS Z8722 Condition c standard
Whiteness Index (ASTM E313-00,ASTM
E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby)
Yellowness Index (ASTM D1925,ASTM E313-00,ASTM E313-73)
Tint(ASTM E313-00), Metamerism Index, Milm
APHA,Pt-Co,Gardner,Color
Difference(ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,
ΔE*00)
Spectral ResponseCIE Luminosity function y
Wavelength400-700nm
Wavelength Interval10nm
Geometry0/d
Measurement Area/Sample Port16.5mm/21mm
Measurement Range0-100%
Haze Resolution0.01
Haze Repeatability≤0.1
Sample SizeThickness ≤150mm
Display5 inch TFT LCD screen
Working Temperature10-40 ℃
Size (LxWxH)598mm X 247mm X 366mm
Standard AccessoryPC software (Color QC)

CHNSpec Technology （Zhejiang）Co.,Ltd. was found in 2008, and we are specializes in the R&D, production and sales of colorimeters, spectrophotoemters, haze meters, gloss meters and spectral analysis instruments, and is a leading producer in the color measurement field in China.Oue products have been widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory..We are national high technology enterprise.Till September of 2018, Hangzhou CHNSpec Technology has received 11 invention patents ,3 software copyright patents and one American invention patent.In addition there are more than 10 invention patents in the announcement state. We have published more than 20 papers which more than 10 papers in SCI and EI and others are in the national first grade journal of science and research.

Our goal is to exceed the expectations of every client by offering outstanding customer service, increased flexibility, and greater value, thus optimizing system functionality and improving operation efficiency.We wish create value for customers and achieve win-win and common development and open a new era.

CHNSpec’s one-stop service gives you complete control over the sourcing, distribution, sales, delivery and after-sales services. In addition, our attention to detail and quality of work, paired with years of industry experience, make us your perfect partner to produce outstanding results. We also offer a significant security advantage to you as we are the only organization with trusted and experienced key staff involved in the product sales. It also means effective cost control and short lead times between sales and deliveries. We put customers upon everything else, and we are trying our best to satify your all needs.We sincerely support the best services for out customers

Our quality assurance program ensures that all products continuously conform to standards, from when it was sourced to when it is awaiting delivery at our warehouse. All of our products are being tested by QC and verified by 3rd party to ensure all the specifications are strictly met.

CHNSpec will always provide on time delivery. From order taking to deliveries, we ensure all products are sent out to esteemed customers on time. Before-sales and after-sales service is paramount to us, and constantly ingrained into our staff. All CHNSpec personnel are well-equipped with deep product knowledge and trained in the marketing and sales aspect of our products. Lastly, all product queries are important to us, no matter the size and scale of it.

*From:

*To:

CHNSpec Technology （Zhejiang）Co.,Ltd

*Subject:

*Message:

Characters Remaining: (0/3000)

CHNSpec Technology （Zhejiang）Co.,Ltd

Touch Screen Plastic Glass Transparency Meter for Clarity Haze and Transmission Test CS-720

Touch Screen Plastic Glass Transparency Meter for Clarity Haze and Transmission Test CS-720

Touch Screen Plastic Glass Transparency Meter for Clarity Haze and Transmission Test CS-720

6. Haze QC software as Standard Accessory

7.Seven-inch Android Touch Screen for Better Testing Experience

digital haze meter

transmission haze measurement

Touch Screen Plastic Glass Transparency Meter for Clarity Haze and Transmission Test CS-720

Type	Color and Haze Meter CS-720
Light Source	CIE-A,CIE-C,CIE-D65 Chromaticity Value: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF, U30,DLF,NBF,TL83,TL84
Standards	ASTM D1003/D1044,ISO13468/ISO14782 CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard
Parameters	HAZE,Transmittance(T) CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard Whiteness Index (ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby) Yellowness Index (ASTM D1925,ASTM E313-00,ASTM E313-73) Tint(ASTM E313-00), Metamerism Index, Milm APHA,Pt-Co,Gardner,Color Difference(ΔEab,ΔECH,ΔEuv,ΔEcmc(2:1),ΔEcmc(1:1),ΔE94, ΔE*00)
Spectral Response	CIE Luminosity function y
Wavelength	400-700nm
Wavelength Interval	10nm
Geometry	0/d
Measurement Area/Sample Port	16.5mm/21mm
Measurement Range	0-100%
Haze Resolution	0.01
Haze Repeatability	≤0.1
Sample Size	Thickness ≤150mm
Display	5 inch TFT LCD screen
Working Temperature	10-40 ℃
Size (LxWxH)	598mm X 247mm X 366mm
Standard Accessory	PC software (Color QC)
