Name: 5 inches TH 100 0d 21mm dual methods Transmittance Haze Meter for haze color text
Brand: CHNSpec
Price: 1 USD

5 inches TH 100 0/d 21mm dual methods Transmittance Haze Meter for haze color text

Ask Lasest Price

Brand Name :

CHNSpec

Model Number :

TH-100

Certification :

Price :

negotiable

Payment Terms :

L/C, D/A, D/P, T/T, Western Union

Delivery Time :

5-7days

5 inches TH 100 0/d 21mm dual methods Transmittance Haze Meter for haze color text

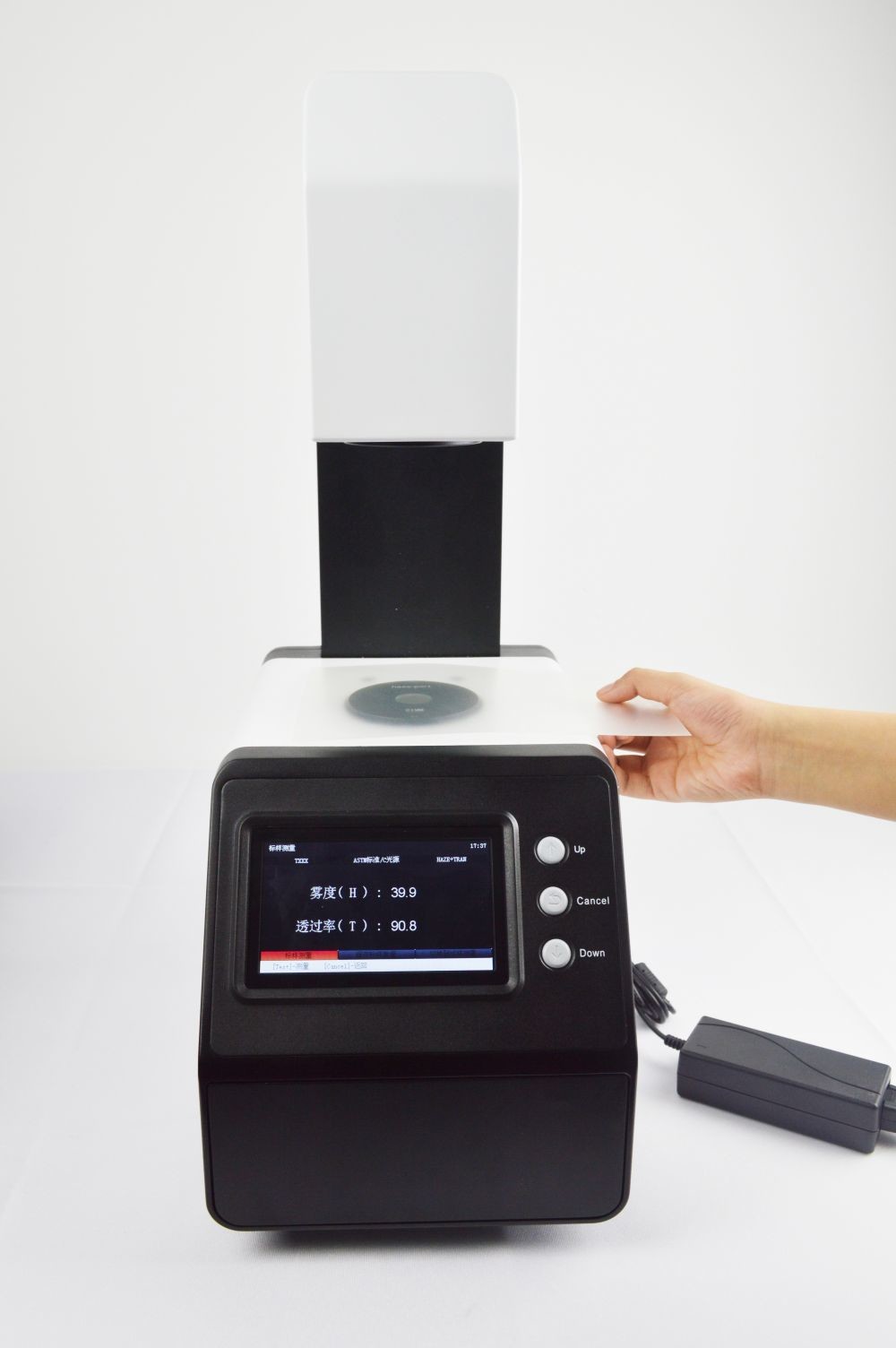

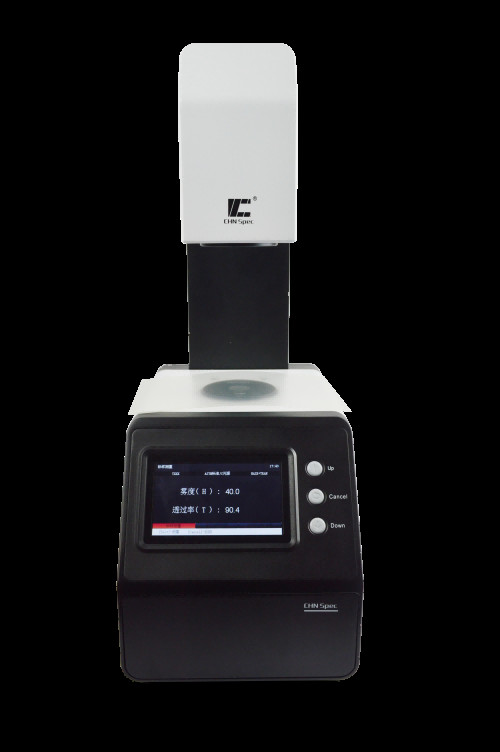

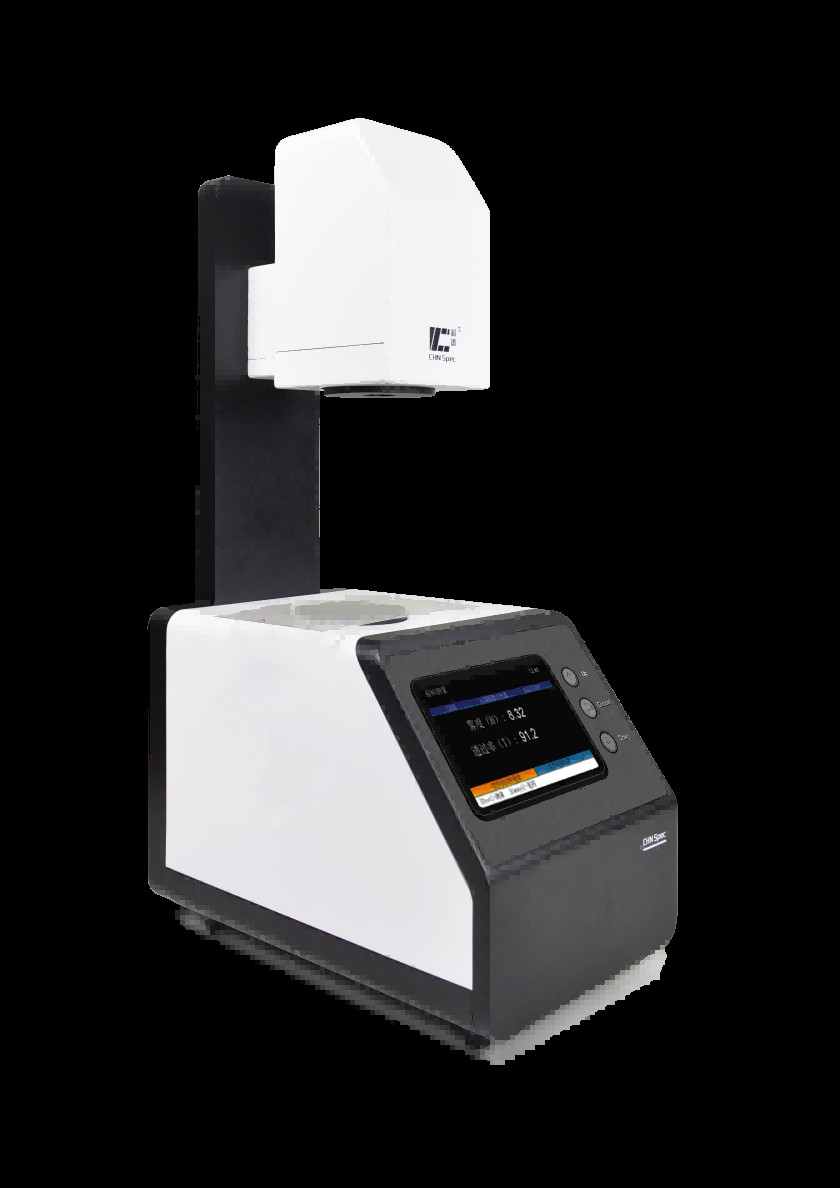

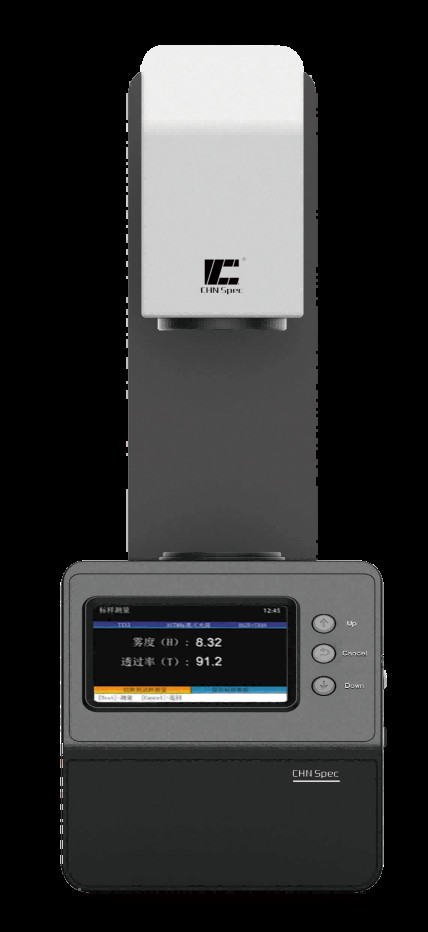

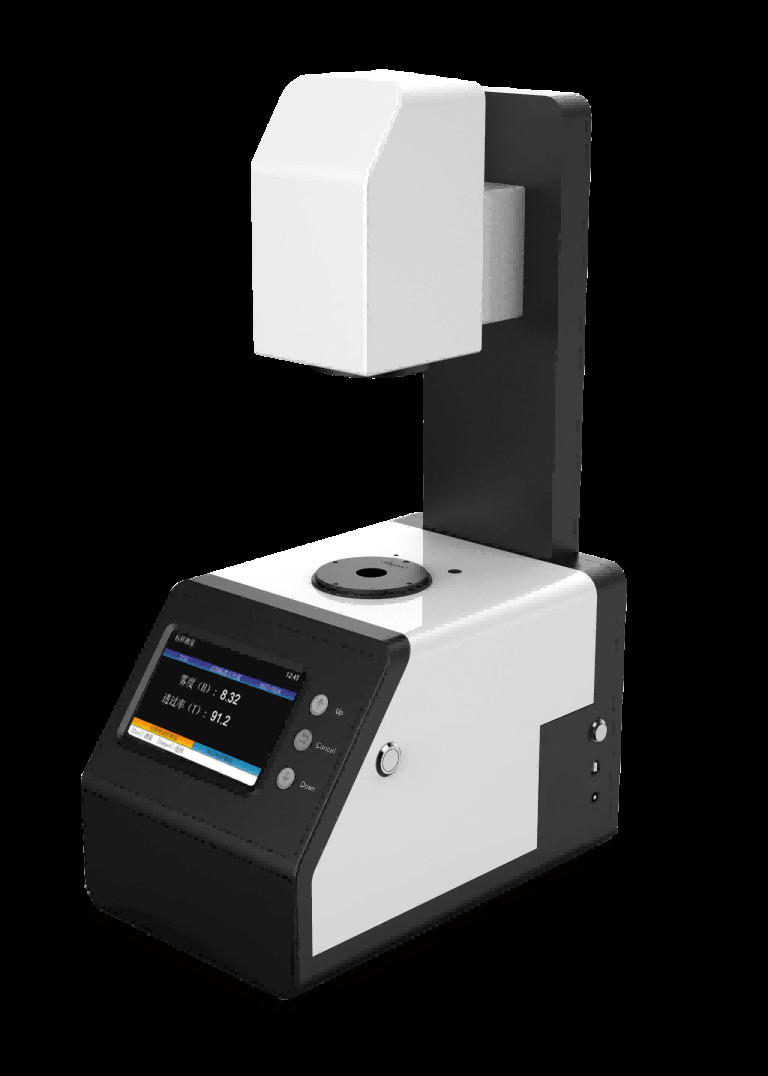

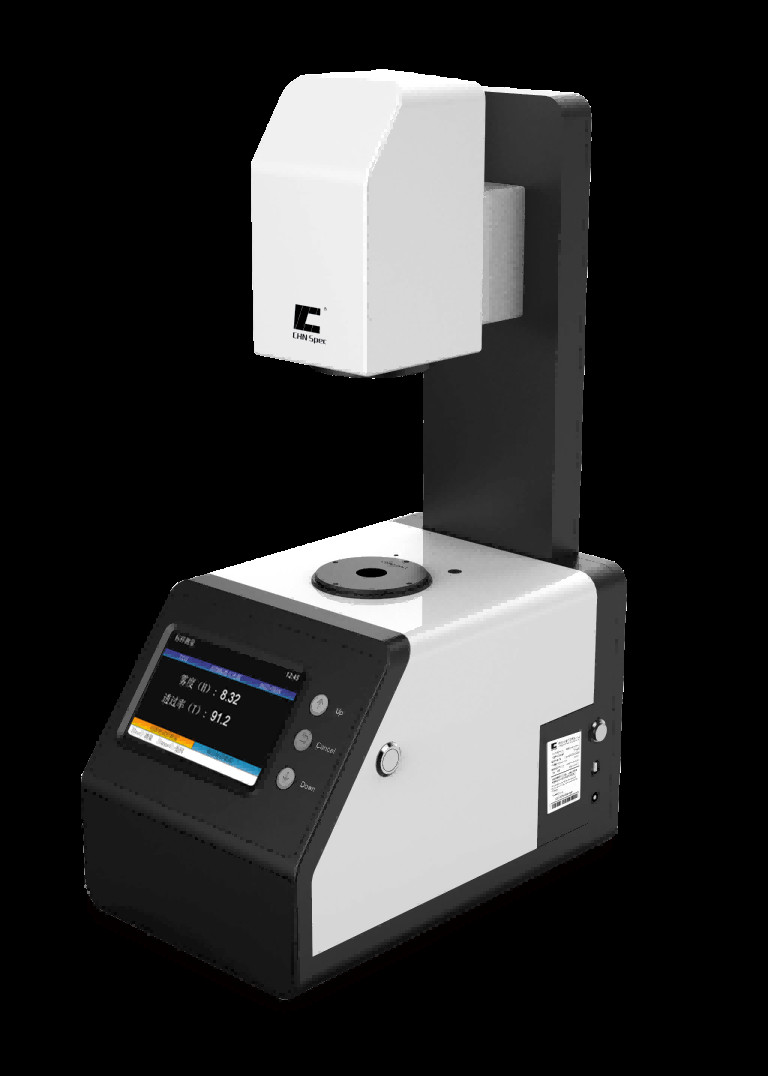

Haze Meter TH-100 Introduction

5 inches TH 100 0/d 21mm dual methods Transmittance Haze Meter for haze color text

It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.

Part 1. Instrument Advantages

1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.

2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.

3). It can realize transmittance compensation measurement which can provide higher accuracy test result.

4). Open measurement area, no limit on sample size.

5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.

6). It can realize both horizontal and vertical measurement to measure different kinds of materials.

7). It adopts LED light source whose lifetime can reach 10 years.

8). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.

9). Small size and light weight which makes it much easier to carry.

Part 2. Application

Plastic Sheet Film Glass Screen

Part 3. Technical Data

Type	Haze Meter TH-100
Light Source	CIE-A,CIE-C,CIE-D65
Standards	ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08
Parameters	HAZE, Transmittance(T)
Spectral Response	CIE Luminosity function Y/V (λ)
Geometry	0/d
Measurement Area/ Aperture Size	16.5mm/21mm
Measurement Range	0-100%
Haze Resolution	0.01
Haze Repeatability	≤0.1
Sample Size	Thickness ≤150mm
Memory	20000 value
Interface	USB
Power	DC24V
Working Temperature	10-40 ℃ (+50 – 104 °F)
Storage Temperature	0-50℃ (+32 – 122 °F)
Size (LxWxH)	310mm X 215mm X 540mm
Standard Accessory	Free PC software (Haze QC), one pcs of haze standard plate
Optional	Fixtures
Ex Works Price for Final User	US$2000

CHNSpec Technology （Zhejiang）Co.,Ltd. was found in 2008, and we are specializes in the R&D, production and sales of colorimeters, spectrophotoemters, haze meters, gloss meters and spectral analysis instruments, and is a leading producer in the color measurement field in China.Oue products have been widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory..We are national high technology enterprise.Till September of 2018, Hangzhou CHNSpec Technology has received 11 invention patents ,3 software copyright patents and one American invention patent.In addition there are more than 10 invention patents in the announcement state. We have published more than 20 papers which more than 10 papers in SCI and EI and others are in the national first grade journal of science and research.

Our goal is to exceed the expectations of every client by offering outstanding customer service, increased flexibility, and greater value, thus optimizing system functionality and improving operation efficiency.We wish create value for customers and achieve win-win and common development and open a new era.

CHNSpec’s one-stop service gives you complete control over the sourcing, distribution, sales, delivery and after-sales services. In addition, our attention to detail and quality of work, paired with years of industry experience, make us your perfect partner to produce outstanding results. We also offer a significant security advantage to you as we are the only organization with trusted and experienced key staff involved in the product sales. It also means effective cost control and short lead times between sales and deliveries. We put customers upon everything else, and we are trying our best to satify your all needs.We sincerely support the best services for out customers

Our quality assurance program ensures that all products continuously conform to standards, from when it was sourced to when it is awaiting delivery at our warehouse. All of our products are being tested by QC and verified by 3rd party to ensure all the specifications are strictly met.

CHNSpec will always provide on time delivery. From order taking to deliveries, we ensure all products are sent out to esteemed customers on time. Before-sales and after-sales service is paramount to us, and constantly ingrained into our staff. All CHNSpec personnel are well-equipped with deep product knowledge and trained in the marketing and sales aspect of our products. Lastly, all product queries are important to us, no matter the size and scale of it.
