Name: Switchable Apertures Portable Color Spectrophotometer
Brand: CHNSpec
Price: 1 USD

Switchable Apertures Portable Color Spectrophotometer

Ask Lasest Price

Brand Name :

CHNSpec

Model Number :

CS500

Certification :

Price :

negotiable

Payment Terms :

L/C, D/A, D/P, T/T, Western Union

Supply Ability :

1000pcs per month

Delivery Time :

5-7days

Switchable Apertures Portable Color Spectrophotometer

UV Included And Excluded Switchable Apertures Color Spectrophotometer CS500

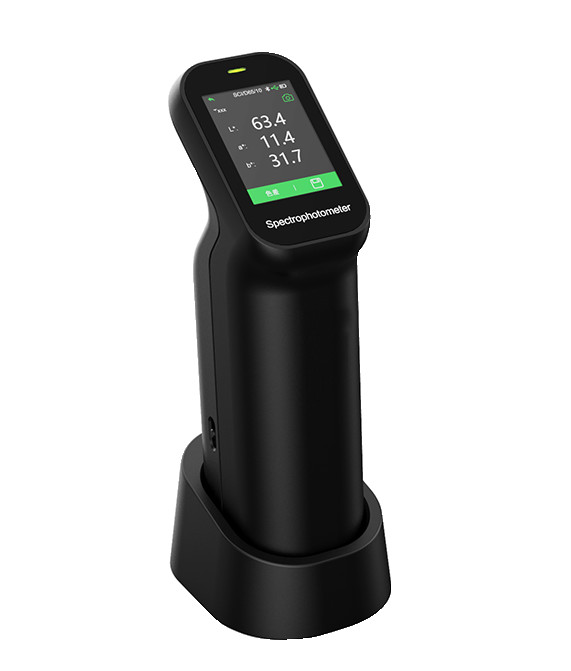

Portable Spectrophotometer CS-500

------Revolution in color measurement

Portable spectrophotometer CS-500 is with the powerful performance configuration which makes color measurement more professional. Excellent inter-instrument agreement ensures consistency of the measurement data of multiple devices; Wireless connection with Android or IOS devices via Bluetooth. It greatly expands the application boundary of color spectrophotometer; automatic calibration, magnetic seat charging, touch screen operation... it will fully upgrade the user experience.

Part 1. Product Features
1. 20 kinds of color indexes and 26 kinds of illuminants
Spectrophotometer CS-500 supports 26 kinds of illuminants such as D65/D50,etc. It can get the value of reflectance, CIE-Lab,CIE-LCh, whiteness, yellowness, opacity, color strength and other color indexes.

2. Excellent inter-instrument Agreement
inter-instrument agreement ＜0.3 which ensures test results consistency of multiple devices.

3. Auto calibration
The revolutionary auto calibration technology allows the instrument to achieve automatic calibration, which greatly improves the user experience.

4. Multi-function calibration base
The multi-function calibration base keeps the white tile being protected, combining calibration and charging functions in one. When instrument is placed on the base, it will be automatically charged and calibrated. It saves a lot of time for the user to charge and calibration the device.

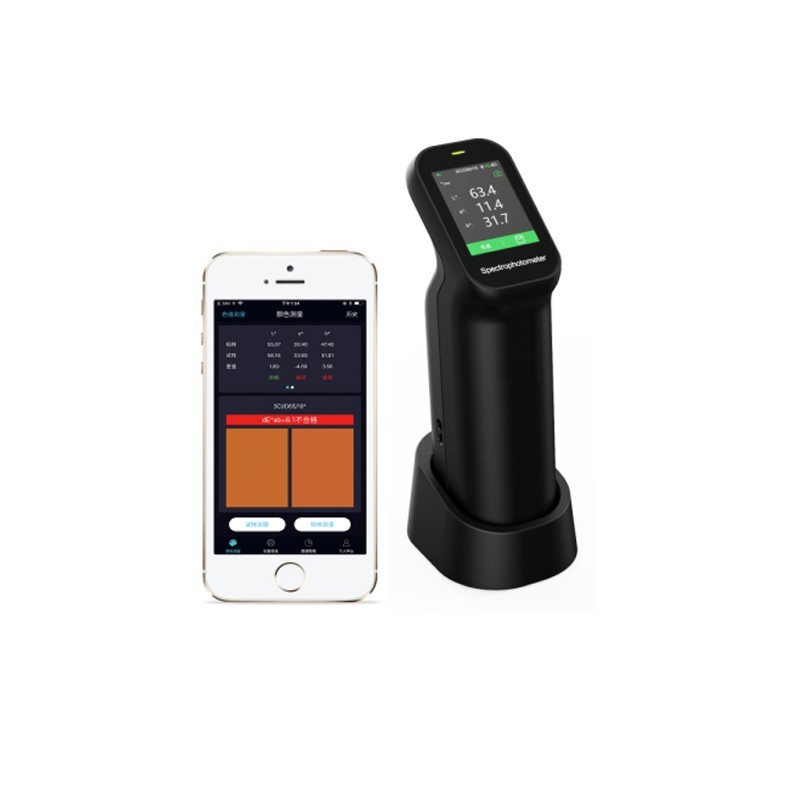

5. Connect to the mobile device App to expand more functions
Connect to APP to find the similar color from different color swatches. Personal color database can also be established in the cloud and samples saved in cloud can be set into target for color different test. From APP, we can also obtain instrument data or download data to the instrument.

Switchable Apertures Portable Color Spectrophotometer
Part 2. Technical Parameter

Model	Spectrophotometer CS-500
Geometry	D/8 (diffused illumination,8° viewing), Specular Component Included(SCI)
Light Source	LED(Full band balanced LED)
Color Spaces and Indices	Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔEab, ΔEcmc, ΔE94,ΔE00),WI(ASTM E313-00,ASTM E313- 73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness (My,dM),Color Fastness, Tint,(ASTM E313-00),Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength
Illuminants	A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Observer Angles	2°,10°
Sensor	256 pixel CMOS sensor
Calibration	Auto
Wavelength Interval	10nm
Wavelength Range	400-700nm
Sphere Size	40mm
Reflectance Range	0-200%
Reflectance Resolution	0.01%
Repeatability	Chromaticity value: Max. :dEab< 0.1 Average :dEab< 0.05 Standard deviation within ΔE*ab 0.03 (when a white tile is measured 30 times at 5-seconds interval) Reflectance: Standard deviation < 0.1%
Illumination Area/Aperture	MAV:Φ8mm/Φ11mm
Inter-instrument agreement	ΔE*ab＜0.3 (BCRA Series Ⅱ, average measurement of 12 tiles,MAV/SCI)
Test Time	About 2s
Storage	APP mass storage
Battery	Rechargeable, 8000 times continuous tests, 3.7V/3000mAh
Screen	IPS Full Color Screen,2.4 inches
Interface	USB,Bluetooth
Lamp Lifetime	10 years, 1 million tests
Language	Chinese and English
Software	Android, IOS, Windows
Camera	without
Pass Metrology	Yes, metrology level I
Instrument Size	L x W x H (77.8mm x 53.2mm x 185.7mm)
Weight	About 300g
Packing Weight and Size	1.5kgs 32x17x29cm

Part 3. Packing List

Qty.	Name	Qty.	Name
1	Main Instrument	1	Power Cable
1	Operating Manual	1	Charger base

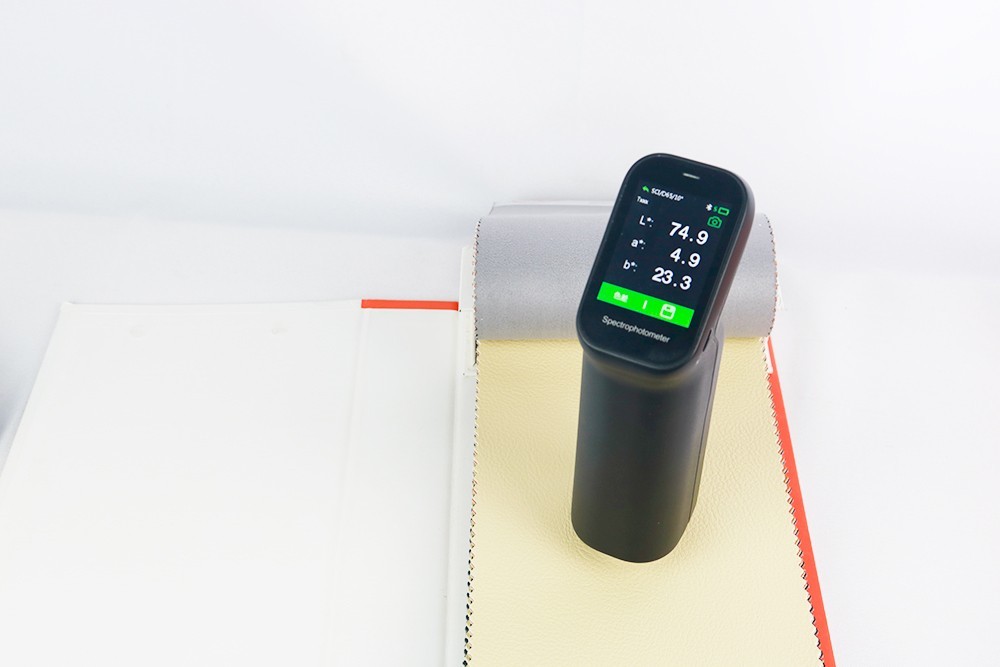

Part 4. Application
Switchable Apertures Portable Color Spectrophotometer
Part 5. Warranty
1 year
a. One Year Warranty Time.
b. Every instrument comes with verification certification to ensure the accuracy of the test result and save first year calibration cost for customer.

CHNSpec Technology （Zhejiang）Co.,Ltd. was found in 2008, and we are specializes in the R&D, production and sales of colorimeters, spectrophotoemters, haze meters, gloss meters and spectral analysis instruments, and is a leading producer in the color measurement field in China.Oue products have been widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory..We are national high technology enterprise.Till September of 2018, Hangzhou CHNSpec Technology has received 11 invention patents ,3 software copyright patents and one American invention patent.In addition there are more than 10 invention patents in the announcement state. We have published more than 20 papers which more than 10 papers in SCI and EI and others are in the national first grade journal of science and research.

Our goal is to exceed the expectations of every client by offering outstanding customer service, increased flexibility, and greater value, thus optimizing system functionality and improving operation efficiency.We wish create value for customers and achieve win-win and common development and open a new era.

CHNSpec’s one-stop service gives you complete control over the sourcing, distribution, sales, delivery and after-sales services. In addition, our attention to detail and quality of work, paired with years of industry experience, make us your perfect partner to produce outstanding results. We also offer a significant security advantage to you as we are the only organization with trusted and experienced key staff involved in the product sales. It also means effective cost control and short lead times between sales and deliveries. We put customers upon everything else, and we are trying our best to satify your all needs.We sincerely support the best services for out customers

Our quality assurance program ensures that all products continuously conform to standards, from when it was sourced to when it is awaiting delivery at our warehouse. All of our products are being tested by QC and verified by 3rd party to ensure all the specifications are strictly met.

CHNSpec will always provide on time delivery. From order taking to deliveries, we ensure all products are sent out to esteemed customers on time. Before-sales and after-sales service is paramount to us, and constantly ingrained into our staff. All CHNSpec personnel are well-equipped with deep product knowledge and trained in the marketing and sales aspect of our products. Lastly, all product queries are important to us, no matter the size and scale of it.
