Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

0.01unit Haze Resolution 16.5mm Illumination Haze Measurement Instrument / Transmittance Haze Meter

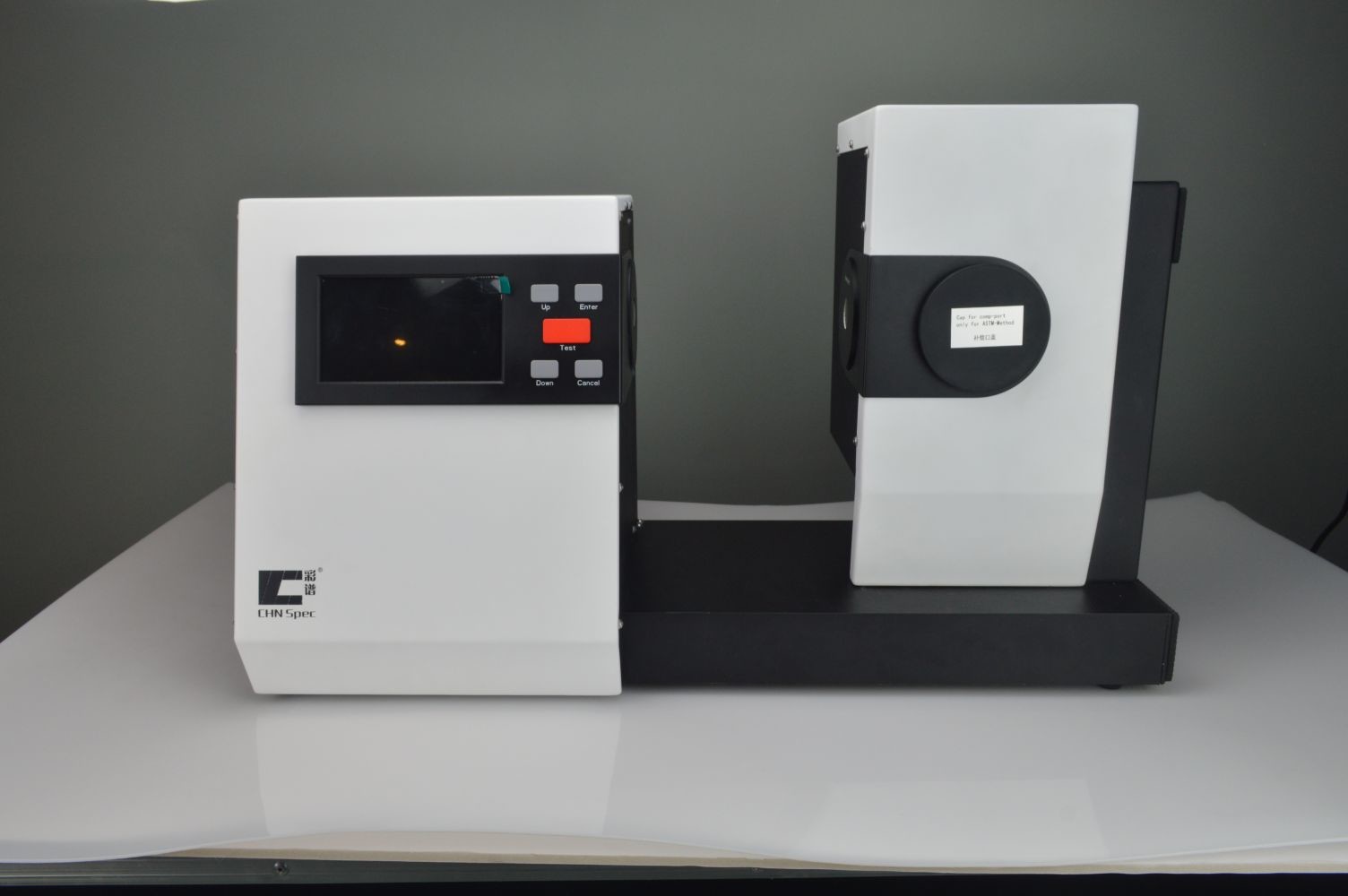

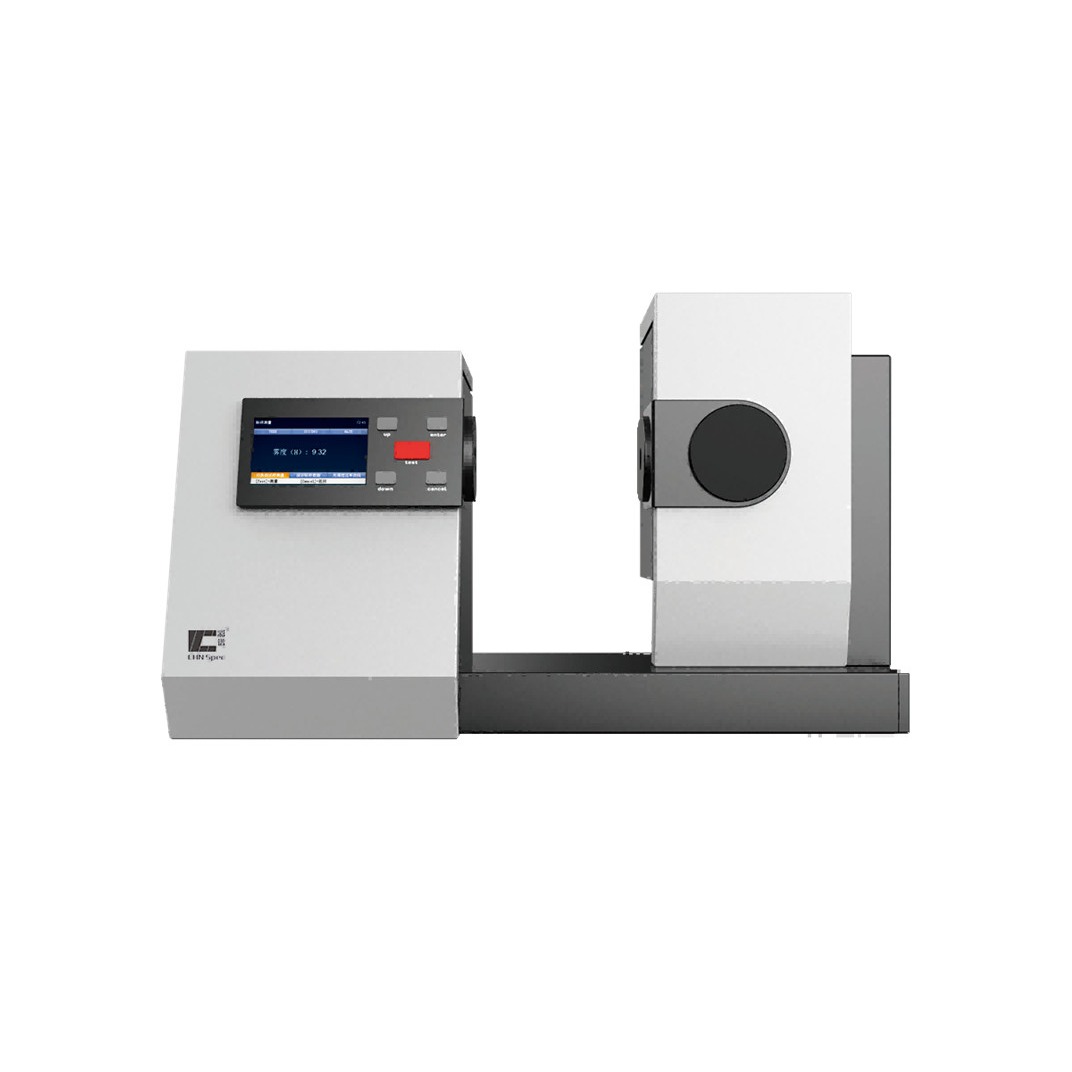

Haze MeterCS-700

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

It is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.

Part 1. Instrument Introduction

1. Conform to ASTM and ISO standard. 3 kinds of light sources A,C and D65 for haze measurement.

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

2. It can realize transmittance compensation measurement which can provide higher accuracy test result.

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

3. Open measurement area, no limit on sample size. Vertical measurement is also available.

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

4. Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

5. Instrument is with haze and transmittance measurement software.

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

Part 2.Instrument Detail

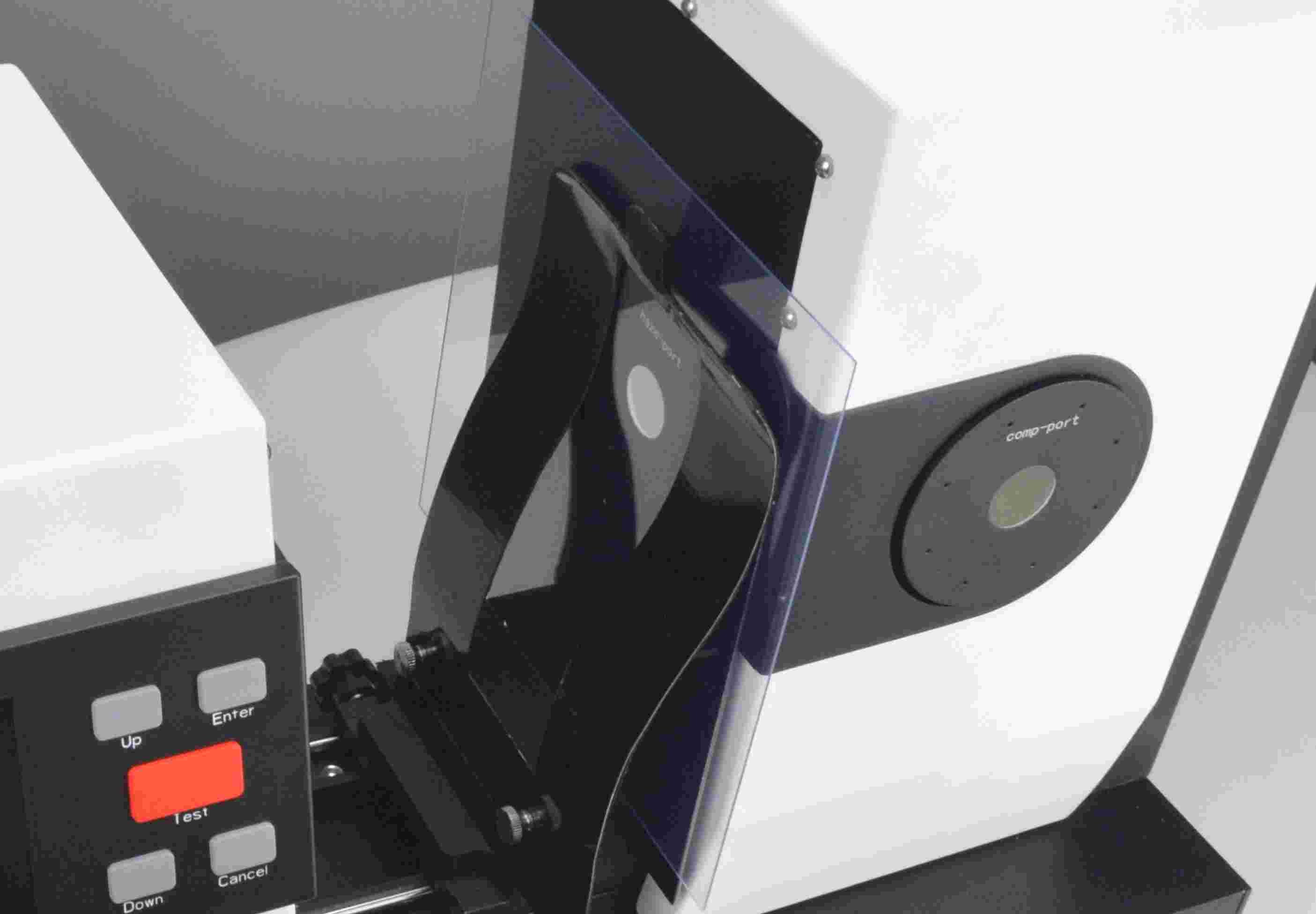

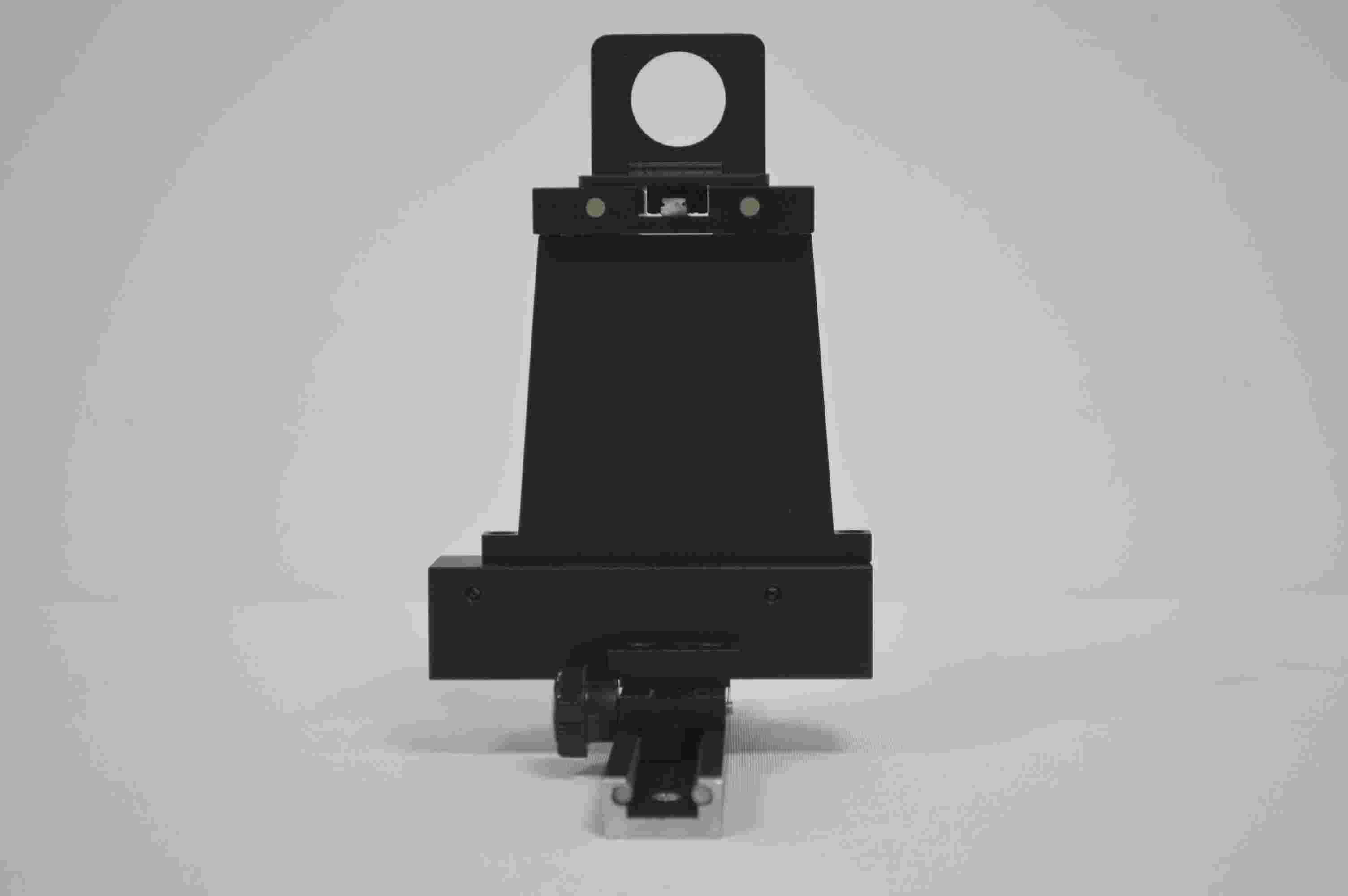

Liquid Measurement Sheet Material Measurement

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

Cap for Compensation Port 0% Calibration Cap

Part 3. Technical Data

Type	Haze Meter CS-700
Light Source	CIE-A,CIE-C,CIE-D65
Standards	ASTM D1003/D1044 ISO13468/ISO14782
Parameters	HAZE,Transmittance(T)
Spectral Response	CIE Luminosity function y
Wavelength	400-700nm
Wavelength Interval	10nm
Geometry	0/d
Measurement Area/Sample Port	16.5mm/21mm
Measurement Range	0-100%
Haze Resolution	0.01
Haze Repeatability	≤0.1
Sample Size	Thickness ≤150mm
Display	5 inch TFT LCD screen
Memory	20000 value
Interface	USB
Power	220V (with power cable)
Working Temperature	10-40 ℃
Storage Temperature	0-50℃
Size (LxWxH)	598mm X 247mm X 366mm
Standard Accessory	PC software (Color QC)
Optional	Measurement Fixture, Haze standard film

Part 4. Application Field

Transmittance Haze Meter 0.01unit Haze Resolution 16.5mm Illumination

Part 5. Technical Support

1. One year warranty.
