Name: Display Resolution Portable Window Tint Meter Tester Visible Light UV IR
Brand: CHN spec
Price: 1 USD

Display Resolution Portable Window Tint Meter Tester Visible Light UV IR

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CT-23

Certification :

Price :

negotiable

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

1000 per month

Delivery Time :

5-7 days

Display Resolution Portable Window Tint Meter Tester Visible Light UV IR

China CHNS Display Resolution Model Portable Window Tint Meter Tester Visible Light UV IR

Digital Light Transmittance Meter with 3-channel Model Portable Window Tint Meter Tester Visible Light UV IR

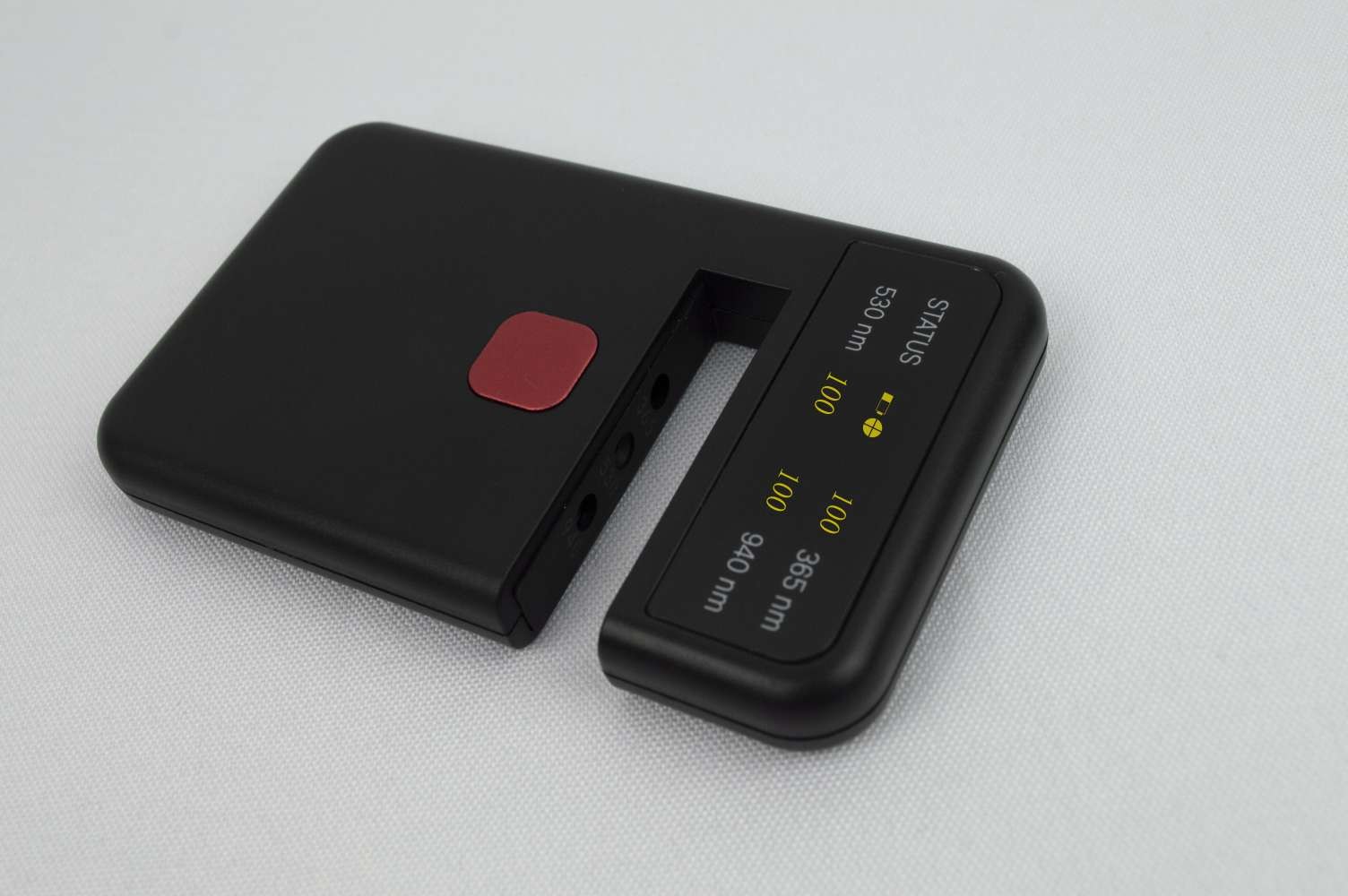

Handheld Light Transmission Meter
Display Resolution Portable Window Tint Meter Tester Visible Light UV IR

Measurement Principle:
The measuring principle of the light transmittance meter is to irradiate the measured transparent substance with a light source, and the sensor respectively detects the incident light intensity of the light source and the light intensity after passing through the measured substance, and the ratio of the transmitted light intensity to the incident light intensity is light transmission. Rate, expressed as a percentage.

Product description:
* The three-channel model combines three kinds of light transmittance : visible light, infrared light and ultraviolet light.
* It can be applied to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane.

Instrument Advantages :
1. Simple operation and fast to get the result, as long as the sample is placed in the test area, the test result will be displayed.
2. It can measure the transmittance of UV light, visible light, and infrared light.
3. It adopts parallel light path design, sample measurement thickness can reach 13mm
4. The instrument has a data lock function. After the test, press the HOLD key on the instrument to lock the test data, and the test sample data will still remain on the display interface after the sample is taken away.
5. Digital display, wide measuring range, high resolution.
6. Two calibration modes: Manual calibration and automatic calibration for easy usage
7. Small size and non-slip design, easy to grasp and carry for outdoor test
8. Rechargeable lithium battery, no need to take time to replace batteries.

Technical Specifications

Name	Portable Transmittance Tester
Model	CT-23
Geometry	Transmission
Calibration	Manual + Automatic
Test Index	Ultraviolet (peak wavelength 365nm) Visible light (peak wavelength 530nm) Infrared (peak wavelength 940nm)
Test Accuracy	±2%
Display Resolution	0.10%
Sample Thickness	13mm (max.)
Instrument Size	115* 70* 14mm
Test Time	Less than 1s
Battery Volume	750mA
Power Supply	5V/1A
Screen	Full color display, 135*240, 1.14 inch
Recharging Interface	USB
Working Temperature	0-40℃
Humidity	Less than 85%, no condensation
Standard Accessories	USB cable, Lanyard, operate manual

Application
