Name: High Distribution Portable Textile Color Tester Colorimeter Spectrophotometer
Brand: CHN spec
Price: 1 USD

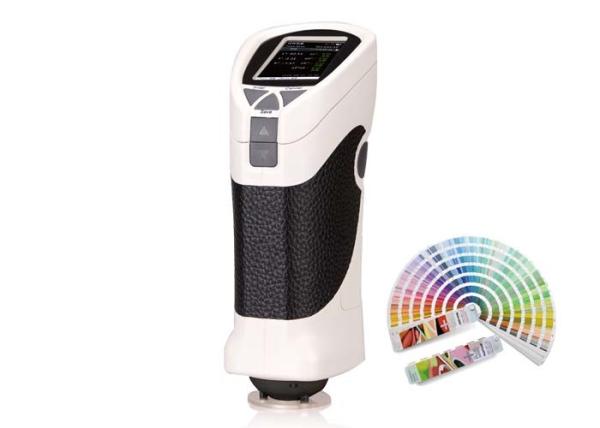

High Distribution Portable Textile Color Tester / Colorimeter Spectrophotometer

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CS-280+

Certification :

Payment Terms :

T/T, Western Union, MoneyGram,Paypal

Supply Ability :

1000 per month

Delivery Time :

5-7 days

Price :

negotiable

High Distribution Portable Textile Color Tester / Colorimeter Spectrophotometer

Product Description

Portable Tristimulus Color Difference Meter for CIE Lab RGB Measurement

Detail Information
Product Description

Detail Information
Illumination System:	D/8,SCI	Measuring Caliber:	11mm (optional 15mm,4mm,6mm)
Storage:	20000 Test Results	Instrument Size:	77x86x210mm
Measurement Time:	2 Second	Measuring Range:	0-200%
Repeatability:	Below 0.08	Measuring Light Source:	LED
Languages:	English And Chinese	Device Weight:	550g (without Battery)
Other Function:	With Camera	Interface:	USB2.0

Product Description

Portable Tristimulus Color Difference Meter for CIE Lab RGB Measurement

Color Difference Meter Introduction

Color difference meter is also called colorimeter or color measurement Instrument.It is widely used in different industries such as textile,plastic cement, printing, paint, weaving and dyeing.It measures the sample color data L*a*b*, L*c*h*, color difference ΔE and ΔLab according to CIE color space.

Color Difference Meter Technical Data

Type	CS-280	CS-280+
Illumination	di/8(Diffused Illumination, 8 degree viewing) (conform to CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7, JIS Z8722 Condition c standard)
Size of integrating sphere	Φ40mm
Sensor	array sensor
Wavelength	400-700nm
Spectrum Resolution	10nm
Measurement Time	2s
Measurement Aperture	11mm,optional 4mm,6mm,15mm
Repeatability	Standard Deviation ΔE*ab 0.08(when a white calibration plate is measured 30 x at 10-second intervals after calibration)
Observe Angles	2° and 10°
Light Source	A,C,D50 and D65
Display	Chromaticity value(Lab,LCh), delta E value, pass/fail, color tendency, average, generate test report
		With camera to see the measurement area
Color Difference Formula	ΔEab,ΔECH
Color Space	CIE-Lab,LCh	CIE-Lab,LCh,XYZ,Yxy
Other		WI(ASTM E313-10,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger,Ganz,Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73)
Data Storage	20000 samples
Light Source Lifetime	5 years, 1.5 million times
Other Function	without	camera view, input color swatches
Power	Rechargeable Lithium Battery 8.4V/2000mAh, adaptor DC12V
Size	77×86×210mm

Color Difference Meter Longest Guarantee

a. One Year Guarantee for whole instrument

Color Difference Meter Free Color QC Software

Device is with free color QC software which can connect the colorimeter with PC. With the software, we could save and manage the color data, derive the data, generate testing report,print test report. It will help the chemist finish the job much easier.

Color Difference Meter Free Packaging & Shipping

Packing Material: canvas bag with carton box

Packing Size: 250x210x200mm

Packing Weight: 1.8kgs

Delivery time: 1-5 days after payment received.

Qty.	Name	Qty.	Name
1	Main Instrument	1	Power Line
1	Operating Manual	1	USB Cable
1	Driving Software	1	Black/White Calibration Tiles
1	Color QC Software	1	Packing List
