Name: Light Source Haze And Transmission Meter Computer Controlled 1 Year Warranty
Brand: CHN spec
Price: 1 USD

Light Source Haze And Transmission Meter Computer Controlled 1 Year Warranty

Ask Lasest Price

Brand Name :

CHN spec

Model Number :

CS-700

Certification :

Payment Terms :

L/C, T/T, Western Union, MoneyGram

Supply Ability :

1000 per month

Delivery Time :

5-7 days

Price :

negotiable

Light Source Haze And Transmission Meter Computer Controlled 1 Year Warranty

computer controlled light source haze and transmission meter

Haze Meter Introduction

Haze meter is also called Haze and Transmittance Test Machine which measures the amount of light that is diffused or scattered when passing through the transparent sample.Transparency is important because a material needs to be more or less see-through depending on its practical usage for example grocery bag needs the light to be more diffused so that less can be seen,while food packing film needs the light to be less diffused so that the contents can be seen clearly.Haze meters are necessary to determine which material is needed for which practical purpose.

CS-700 haze meter is designed for plastic, films, glass, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.

Plastic Film Haze Measurement Instrument / Transmittance Haze Meter

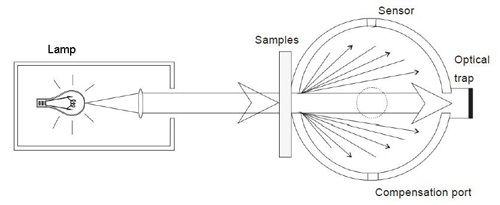

Haze Meter Working Principle

When a beam of parallel light hits the sample and enters the integrating sphere, it is scattered on the sphere inner white coating, the total transmittance is measured when the optical trap outlet on the sphere is closed. When the optical trap is opened, haze will be measured.

Haze Meter Conforms to the following international standards

ASTM D1003/D1044, ISO13468, ISO14782, JIS K7105, JIS K7361, JIS K7136

Haze Meter Advantage

1). It can realize transmittance compensation measurement which can provide higher accuracy test result.
2). Open measurement area, no limit on sample size. Vertical measurement is also available.
3). Different fixtures to meet the measurement requirement for sheet material and liquid in different shapes.
4). Instrument is with free PC software for haze and transmittance measurement.

Haze Meter Technical Data

Type	Haze Meter CS-700
Light Source	CIE-A,CIE-C,CIE-D65
Standards	ASTM D1003/D1044,ISO13468/ISO14782
Parameters	HAZE,Transmittance(T)
Spectral Response	CIE Luminosity function y
Wavelength	400-700nm
Wavelength Interval	10nm
Geometry	0/d
Measurement Area/Sample Port	16.5mm/21mm
Measurement Range	0-100%
Haze Resolution	0.01
Haze Repeatability	≤0.1
Sample Size	Thickness ≤150mm
Display	5 inch TFT LCD screen
Memory	20000 value
Interface	USB
Power	110-240V
Working Temperature	10-40 ℃
Size (LxWxH)	598mm X 247mm X 366mm

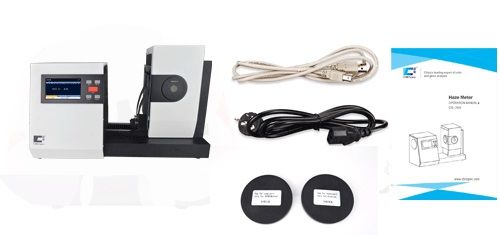

Haze and Transmission Test Machine Packing List
