DC-23D Portable Color Spectrophotometer with Superior Performance and Consistent Results

High precision Portable spectrophotometer DC-23D

DC-23D/25D/26D reference portable spectrophotometer, ultra-high repeatability accuracy dE*ab≤0.01, excellent instrument station difference dE*ab≤0.12, industry-leading wavelength range :360-780nm, dual light source system, providing beyond the expected service life, support NetProf network correction function, 6 measuring apertures are available to easily measure samples of different shapes.

DC-23D:Repeatability dE*ab≤0.02；caliber 11mm,6mm

DC-25D:Repeatability dE*ab≤0.01；caliber 11mm,10mm,6mm,3mm

DC-26D:Repeatability dE*ab≤0.01；caliber 11mm,10mm,6mm,5mm,3mm,1mm*3mm

Industry-leading wavelength range :360-780nm
The wavelength range of conventional colorimeters is 400-700nm, and for more accurate color measurement, the wavelength is extended to 360-780nm.

Superior performance between stations and repeatability
The difference between the stations is 0.12, which helps to improve the color quality between manufacturers and suppliers;
Compared with the previous generation, the repeatability is 50% higher, up to 0.01;

Dual light source system to provide longer than expected service life
Xenon lamp andLED, while providing sufficient UV, visible lightEnergy and ensure tens of millions of sub-measured lifetime.

Supports NetProf network calibration
With NetProf software, the measurement performance of the instrument can be checked regularly to ensure accurate and reliable color measurement;
Through calibration, the system deviation caused by aging and wear of the instrument components can be reduced, and the accurate measurement data can bring users a more confident use experience;

6 measuring apertures are available to easily measure samples of different shapes
11mm,10mm,6mm,5mm,3mm,1*3mm Six sizes of aperture, very small objects or curved samples can be easily measured.

BCRA green plate wavelength calibration
Wavelength accuracy is automatically calibrated using a benchmark BCRA green board to ensure consistent instrumentation.

The accuracy of the indication is improved by 60%
Using a new generation of array silicon optical sensor, the light intake is increased by 65%, the spectral resolution is increased by 39%, and the accuracy is increased by 60% compared with the previous generation.

Intelligent automatic calibration
There is no need for frequent manual calibration when in use, as long as it is placed on the calibration base, the instrument will automatically calibrate the overall instrument function and accuracy according to its own state and environmental factors, ensuring that the instrument is always in a stable state and ready to be ready.

一, Brief table of model differences

model	SpectrophotometerDC-23D	SpectrophotometerDC-25D	SpectrophotometerDC-26D
SCI	●	●	●
SCE	●	●	●
Measurement repeatability	*dEab≤0.02**	*dEab≤0.01**
Inter-Instrument Agreement	*dEab≤0.25**	*dEab≤0.2**	*dEab≤0.12**
Caliber	Φ11mm,Φ6mm	Φ11mm,Φ10mm, Φ6mm,Φ3mm	Φ11mm,Φ10mm, Φ6mm,Φ5mm,Φ3mm, *1mm3mm**
Wavelength range	360-740nm	360-780nm
Light source life	600 million times	1000 million times
UV	●	●	●
Measurement observation method	Camera	Camera	Camera
BCRA Green Brick	●	●	●
NetProf network calibration	●	●	●

二, Productparameters

Product model	Spectrophotometer DC-23D	Spectrophotometer DC-25D	Spectrophotometer DC-26D
Measuring structure※	D/8,SCI+SCE
Light source life	600 million times	1000 million times
Wavelength range	360-740nm	360-780nm
SCI+SCE Measure simultaneously	support
NetProf network calibration	support
Calibration method	BCRA certified black and white board energy calibration,green board wavelength accuracy calibration
Measurement repeatability※※	dE*ab≤0.02	dE*ab≤0.01
Inter-Instrument agreement※※※	dE*ab≤0.25	dE*ab≤0.2	dE*ab≤0.12
Display accuracy	0.01
Lighting source	Full-band balancedLED light source + xenon lamp
UV light source	Yes
Caliber	Φ11mm,Φ6mm	Φ11mm,Φ10mm, Φ6mm,Φ3mm	Φ11mm,Φ10mm, Φ6mm,5mm, Φ3mm,1mm*3mm
Measurement standard	Spectral reflectance,CIE-Lab,CIE-LCh,HunterLab,CIE-Luv,XYZ,Yxy,RGBcolor difference(ΔEab,ΔEcmc,ΔE94,ΔE00),whiteness(ASTM E313-00,ASTM E313-73,CIE,ISO2470/R457,AATCC,Hunter,Taube Berger Stensby),yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73)blackness (My,dM),stain fastness, discoloration Fastness, Tint (ASTM E313-00)color density CMYK(A,T,E,M),metamerism index Milm,Munsell, hiding power, strength (dye strength, tinting strength)
Light source conditions	A,B,C,D50,D55,D65,D75F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
Observation method	Camera
Calibration	Intelligent automatic calibration
Software support	Andriod,iOS,Windows,WeChat applet
Accuracy guaranteed	Guarantee first-level measurement qualification
Standard observer	2°,10°
Integrating sphere diameter	40mm
Standards	CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

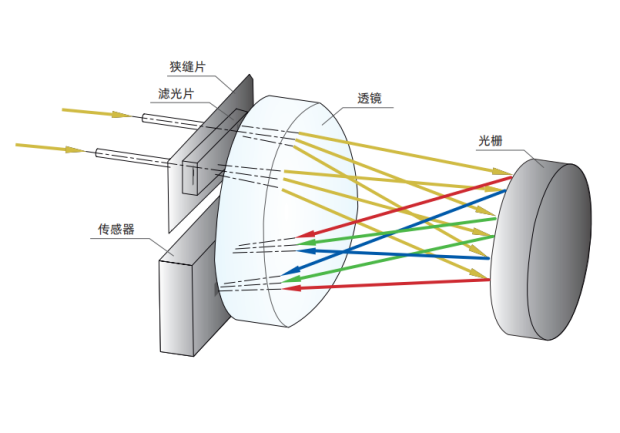

Spectral method	grating
Sensor	Dual column high-precisionCMOS array sensor
Wavelength interval	10nm
Reflectivity measurement range	0-200%
Reflectance resolution	0.01%
Measuring time	About1s
Interface	USB,Bluetooth
Screen	Full color screen,3.5 inches
Battery capacity	Can continuously measure on a single chargein 8000 times,7.2V/3000mAh
Language	Simplified Chinese, English
Storage	Instrument:10,000 items; APP: Mass storage
Size	233mm77mm93mm
Weight	About600g

※ Diffuse lighting/8° direction reception, including specular reflected light/removing specular reflected light

※※ After the whiteboard is calibrated, measure the whiteboard 30 times at 5-second intervals. Standard deviation of the MAV caliber measurement results.

※※※ The average of the MAV caliber measurement values of 12 color plates in the BCRA series.
